Bunnygirl Cross and Daily Open
Download script
This script is a technical analysis tool designed for the MetaTrader platform to identify specific trading opportunities based on moving average interactions and price actions. It helps traders visualize "crosses" (where one trend line moves over another) and "bounces" (where price reacts off a trend line) while keeping track of daily price levels.
Core Trading Logic
The script functions by analyzing the relationship between two different moving averages: a "Master" moving average and a shorter, faster-moving average. It looks for specific moments where these two lines interact to signal potential market shifts.
1. Signal Detection (Crosses and Bounces) The tool identifies three distinct types of bullish (buy) and bearish (sell) signals:
- Simple Crosses: Occur when the fast moving average moves from one side of the master moving average to the other.
- Exact Crosses: Identifies the precise moment a cross occurs on the current candle.
- Bounces: This is a more nuanced detection. If the price approaches a moving average but doesn't cross it, and instead "rebounds" within a specific distance (defined by the user as "PipsForBounce"), the script recognizes this as a valid signal of support or resistance.
2. Filtering Mechanisms To reduce "noise" and avoid false signals during low-activity periods, the script employs two types of filters:
- Time Filter: Users can set specific windows of the day (e.g., during major London or New York sessions) where the script is allowed to display buy and sell symbols. Outside of these hours, the signals are suppressed.
- Pip Offset: The script applies a minimum distance (filter) between the moving average cross and the signal price. This ensures that the signal isn't triggered too close to the line, providing a "buffer" for safer entries.

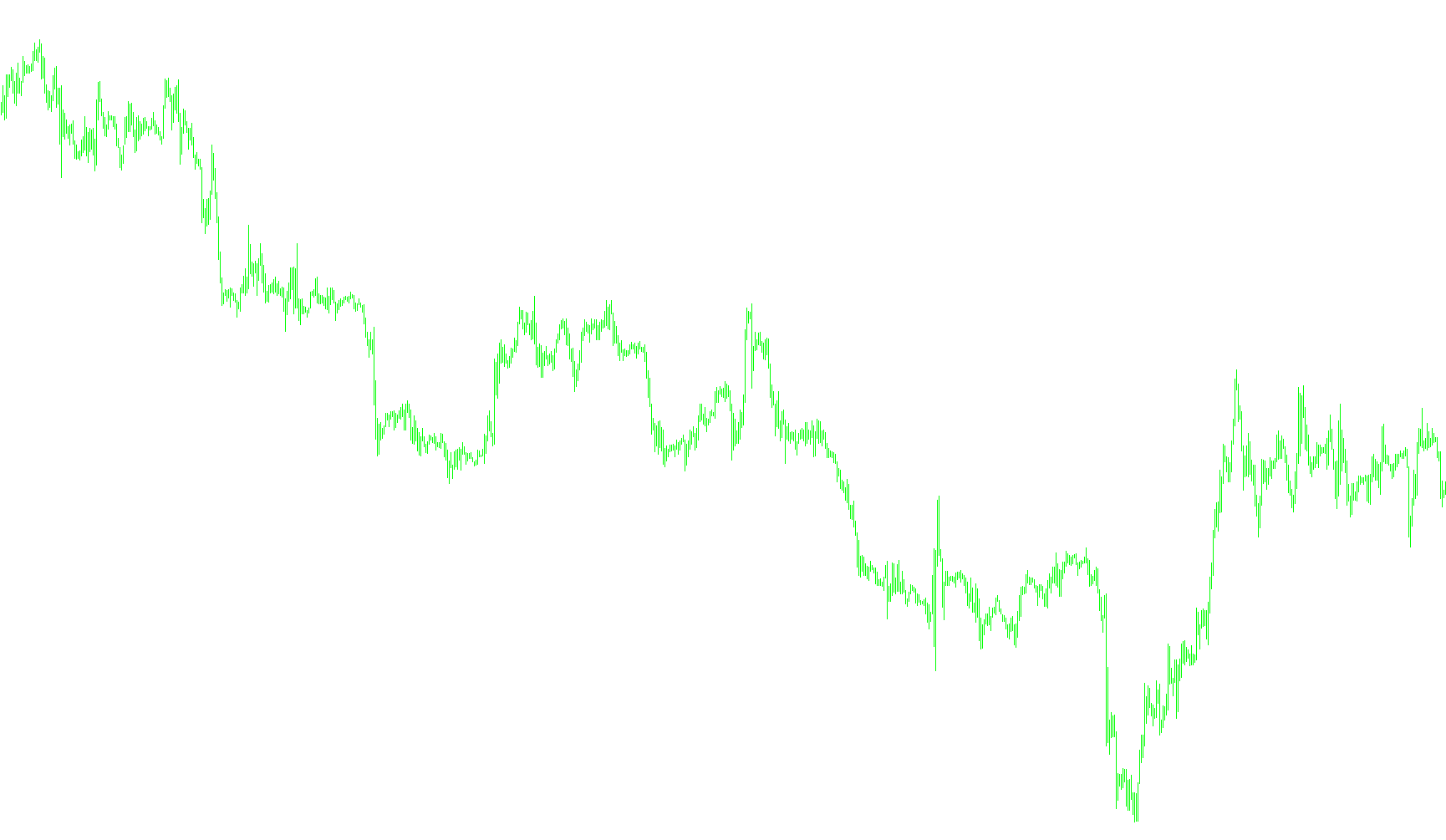

Visual Elements on Chart
The script populates the chart with several visual layers to help the trader make decisions:
- Daily Open: A horizontal line indicating where the market opened at the start of the day. This serves as a primary reference point for intraday trading.
- Filter Lines: These show the calculated "entry zones" based on the moving average cross plus or minus the chosen pip filter.
- Signal Arrows: When a valid cross or bounce is confirmed within the allowed time parameters, the script places an arrow on the chart to highlight the specific entry point.
Multi-Timeframe Compatibility
The script is designed to be "smart" about different timeframes. It performs its heavy calculations on the 30-minute chart to ensure consistency. If a user views the chart on a shorter timeframe (like 5 or 15 minutes), the script automatically calculates and "projects" the data from the 30-minute chart onto the smaller candles, ensuring the trader sees the same signals regardless of their current zoom level.
User Information Display
Finally, the script provides a real-time text summary on the corner of the screen. This display tells the trader:
- The current price at which the market opened today.
- The exact time and direction (bullish or bearish) of the most recent moving average cross or bounce.
Price Data Components
Indicators Used
Miscellaneous
10
Views
0
Downloads
0
Favorites
Bunnygirl Cross and Daily Open
//+------------------------------------------------------------------+
//| Bunnygirl Cross and Daily Open.mq4 |
//| Copyright © 2005, David W. Thomas |
//| mailto:davidwt@usa.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, David W. Thomas"
#property link "mailto:davidwt@usa.net"
#property indicator_chart_window
#property indicator_buffers 6
#property indicator_color1 DarkViolet
#property indicator_color2 Blue
#property indicator_color3 Red
#property indicator_color4 Gray
#property indicator_color5 Blue
#property indicator_color6 Red
//---- input parameters
extern int PipsForBounce=3;
extern int TimeZoneOfData=2;
extern int ma_method=MODE_LWMA;
//---- buffers
double DailyOpenBuffer[];
double BuyFilterBuffer[];
double SellFilterBuffer[];
double CrossBounceBuffer[];
double BuySymbolBuffer[];
double SellSymbolBuffer[];
//---- variables
int indexbegin = 0;
string mastrtype = "";
double dailyopen = 0,
crossamount,
filter = 0;
datetime crosstime = 0;
bool crossdir = true;
bool FilterTradingTime = true;
int beginfiltertime = 0;
int endfiltertime = 24;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(0, DailyOpenBuffer);
SetIndexLabel(0, "Daily Open");
SetIndexEmptyValue(0, 0.0);
SetIndexStyle(1, DRAW_LINE);
SetIndexBuffer(1, BuyFilterBuffer);
SetIndexLabel(1, "Buy Filter");
SetIndexEmptyValue(1, 0.0);
SetIndexStyle(2, DRAW_LINE);
SetIndexBuffer(2, SellFilterBuffer);
SetIndexLabel(2, "Sell Filter");
SetIndexEmptyValue(2, 0.0);
SetIndexStyle(3, DRAW_LINE, STYLE_DOT);
SetIndexBuffer(3, CrossBounceBuffer);
SetIndexLabel(3, "Cross/Bounce");
SetIndexEmptyValue(3, 0.0);
SetIndexStyle(4, DRAW_ARROW);
SetIndexArrow(4, 233);
SetIndexBuffer(4, BuySymbolBuffer);
SetIndexLabel(4, "Cross Up Symbol");
SetIndexEmptyValue(4, 0.0);
SetIndexStyle(5, DRAW_ARROW);
SetIndexArrow(5, 234);
SetIndexBuffer(5, SellSymbolBuffer);
SetIndexLabel(5, "Cross Down Symbol");
SetIndexEmptyValue(5, 0.0);
//----
indexbegin = Bars - 20;
if (indexbegin < 0)
indexbegin = 0;
if (Symbol() == "EURUSD")
filter = 20 * Point;
else
filter = 25 * Point;
if (ma_method == MODE_EMA)
mastrtype = "EMA";
else
mastrtype = "WMA";
Print(" Cross of ", mastrtype, " with a filter of ", filter/Point, " pips.");
if (FilterTradingTime)
{
beginfiltertime = 6 + TimeZoneOfData;
endfiltertime = 17 + TimeZoneOfData;
Print(" Only shows buy/sell filters from ", beginfiltertime, " to ", endfiltertime, " hours (chart time).");
}
else
{
beginfiltertime = 0;
endfiltertime = 24;
Print(" Show buy/sell filters at all times.");
}
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int i;
int counted_bars = IndicatorCounted();
string crossdirstr = "";
//---- check for possible errors
if (counted_bars < 0) counted_bars = 0;
//---- last counted bar will be recounted
if (counted_bars > 0) counted_bars--;
if (counted_bars > indexbegin) counted_bars = indexbegin;
if (Period() == 30)
{
double ma20c, ma20p1, ma20p2,
diff0, diff1, diff2;
for (i = indexbegin-counted_bars; i >= 0; i--)
{
if ((TimeMinute(Time[i]) == 0) && (TimeHour(Time[i]) - TimeZoneOfData == 0))
dailyopen = Open[i];
DailyOpenBuffer[i] = dailyopen;
ma20c = iMA(NULL, PERIOD_M30, 20, 0, ma_method, PRICE_CLOSE, i);
ma20p1 = iMA(NULL, PERIOD_M30, 20, 0, ma_method, PRICE_CLOSE, i+1);
ma20p2 = iMA(NULL, PERIOD_M30, 20, 0, ma_method, PRICE_CLOSE, i+2);
diff0 = iMA(NULL, PERIOD_M30, 5, 0, ma_method, PRICE_CLOSE, i) - ma20c;
diff1 = iMA(NULL, PERIOD_M30, 5, 0, ma_method, PRICE_CLOSE, i+1) - ma20p1;
diff2 = iMA(NULL, PERIOD_M30, 5, 0, ma_method, PRICE_CLOSE, i+2) - ma20p2;
// bull signals:
if (diff0 > 0)
{
if (diff1 < 0) // simple bull cross.
{
crossdir = true;
// determine which bar is closer to the cross:
if (MathAbs(diff0) < MathAbs(diff1))
{
crosstime = Time[i];
crossamount = ma20c;
}
else
{
crosstime = Time[i+1];
crossamount = ma20p1;
}
}
else
if (diff1 == 0 && diff2 < 0) // exact cross on last bar.
{
crossdir = true;
crosstime = Time[i+1];
crossamount = ma20p1;
}
else
if (diff1 > 0 && diff2 > diff1 && diff0 >= diff1 && diff1 <= PipsForBounce*Point) // a bounce.
{
crossdir = true;
crosstime = Time[i+1];
crossamount = ma20p1;
}
}
else
// bear signals:
if (diff0 < 0)
{
if (diff1 > 0) // simple bear cross.
{
crossdir = false;
// determine which bar is closer to the cross:
if (MathAbs(diff0) < MathAbs(diff1))
{
crosstime = Time[i];
crossamount = ma20c;
}
else
crosstime = Time[i+1];
crossamount = ma20p1;
{
}
}
else
if (diff1 == 0 && diff2 > 0) // exact cross on last bar.
{
crossdir = false;
crosstime = Time[i+1];
crossamount = ma20p1;
}
else
if (diff1 < 0 && diff2 < diff1 && diff0 <= diff1 && MathAbs(diff1) <= PipsForBounce*Point) // a bounce.
{
crossdir = false;
crosstime = Time[i+1];
crossamount = ma20p1;
}
}
CrossBounceBuffer[i] = crossamount;
if (TimeHour(Time[i]) >= beginfiltertime && TimeHour(Time[i]) <= endfiltertime)
{
if (crossdir)
{
BuyFilterBuffer[i] = crossamount + filter + Ask - Bid;
SellFilterBuffer[i] = 0;
if (i > 0 && BuyFilterBuffer[i] != BuyFilterBuffer[i+1])//crosstime == Time[i])
BuySymbolBuffer[i] = BuyFilterBuffer[i] + 5*Point;
}
else
{
SellFilterBuffer[i] = crossamount - filter;
BuyFilterBuffer[i] = 0;
if (i > 0 && SellFilterBuffer[i] != SellFilterBuffer[i+1])//crosstime == Time[i])
SellSymbolBuffer[i] = SellFilterBuffer[i] - 5*Point;
}
}
if (crosstime == Time[i+1] && TimeHour(Time[i+1]) >= beginfiltertime && TimeHour(Time[i+1]) <= endfiltertime)
{
CrossBounceBuffer[i+1] = crossamount;
if (crossdir)
{
BuyFilterBuffer[i+1] = crossamount + filter + Ask - Bid;
BuySymbolBuffer[i+1] = BuyFilterBuffer[i+1] + 5*Point;
BuySymbolBuffer[i] = 0.0;
}
else
{
SellFilterBuffer[i+1] = crossamount - filter;
SellSymbolBuffer[i+1] = SellFilterBuffer[i+1] - 5*Point;
SellSymbolBuffer[i] = 0.0;
}
}
}
}
else
if (Period() < 30)
{
// diff formula from aircom@strategybuilderfx.com.
int diff = (TimeMinute(Time[0]) - TimeMinute(iTime(NULL, PERIOD_M30, 0))) / Period() + 1;
int per30 = 30 / Period();
int j;
for (i = indexbegin-counted_bars; i >= 0; i--)
{
j = (i + per30 - diff)/per30;
dailyopen = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 0, j);
DailyOpenBuffer[i] = dailyopen;
crossamount = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 3, j);
CrossBounceBuffer[i] = crossamount;
if (CrossBounceBuffer[i+1] != crossamount)
crosstime = Time[i];
BuyFilterBuffer[i] = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 1, j);
SellFilterBuffer[i] = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 2, j);
if (i > 0 && BuyFilterBuffer[i] > 0.0 && BuyFilterBuffer[i+1] == 0.0)
BuySymbolBuffer[i] = BuyFilterBuffer[i] + 5*Point;
else if (i > 0 && SellFilterBuffer[i] > 0.0 && SellFilterBuffer[i+1] == 0.0)
SellSymbolBuffer[i] = SellFilterBuffer[i] - 5*Point;
}
crossdir = BuyFilterBuffer[0] != 0.0;
}
else
{
dailyopen = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 0, 0);
crossamount = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 3, 0);
BuyFilterBuffer[0] = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 1, 0);
SellFilterBuffer[0] = iCustom(NULL, PERIOD_M30, "Bunnygirl Cross and Daily Open",
PipsForBounce, TimeZoneOfData, ma_method, 2, 0);
crossdir = BuyFilterBuffer[0] != 0.0;
}
if (crossdir)
crossdirstr = "bull";
else
crossdirstr = "bear";
if (crosstime != 0) // use of Digits suggested by aircom@strategybuilderfx.com.
Comment("Current daily open = ", DoubleToStr(dailyopen,Digits), "\nLast ", mastrtype, " cross/bounce: ", TimeToStr(crosstime), ", ", crossdirstr, " at ", DoubleToStr(crossamount,Digits));
else
Comment("Current daily open = ", DoubleToStr(dailyopen,Digits), "\nLast ", mastrtype, " cross/bounce: ", crossdirstr, " at ", DoubleToStr(crossamount,Digits));
return(0);
}
//+------------------------------------------------------------------+
