BPNN Predictor with Smoothing

Download script
Author: Copyright � 2009, gpwr
BPNN Predictor with Smoothing

Overview of the BPNN Predictor Logic

The BPNN (Backpropagation Neural Network) Predictor is a sophisticated technical tool designed to analyze historical price data and project potential future price movements. Unlike standard indicators that rely on simple moving averages or static formulas, this script utilizes an artificial neural network—a system inspired by the way biological neurons process information—to "learn" patterns from the market.

Data Preparation and Smoothing

Before any analysis begins, the script cleans the raw market data. It applies a smoothing technique (an Exponential Moving Average) to the price history. This helps reduce "market noise"—the minor, erratic fluctuations that can often obscure the underlying trend. By working with smoothed data, the system can focus on more significant and meaningful price movements.

The Learning Phase (Training)

The core intelligence of the script is developed during a process called "Training." To do this, the script looks at a specific block of historical data and performs the following steps:

  • Pattern Recognition: It calculates the percentage changes in price over various timeframes.
  • Fibonacci Delays: Interestingly, the system uses Fibonacci numbers (a mathematical sequence often found in nature) to determine the time intervals for its inputs. This allows it to look at different "echoes" of past price actions to see how they correlate with current movement.
  • Error Correction: During training, the neural network makes a prediction, compares that prediction to what actually happened in the past, and calculates the margin of error. It then automatically adjusts its internal "weights"—the importance it assigns to specific data points—to minimize that error for the next round. This cycle repeats hundreds or thousands of times until the model becomes highly accurate at identifying patterns.

The Prediction Phase (Testing)

Once the network is "trained" and has established its rules, it moves into the prediction phase. It takes the very latest market data and feeds it into the trained model.

The script then performs a "forward projection":

  1. It predicts the immediate next price change based on current patterns.
  2. It then takes that predicted result and uses it as an input to predict the following price change.
  3. This chain continues until it has projected a path into the future.

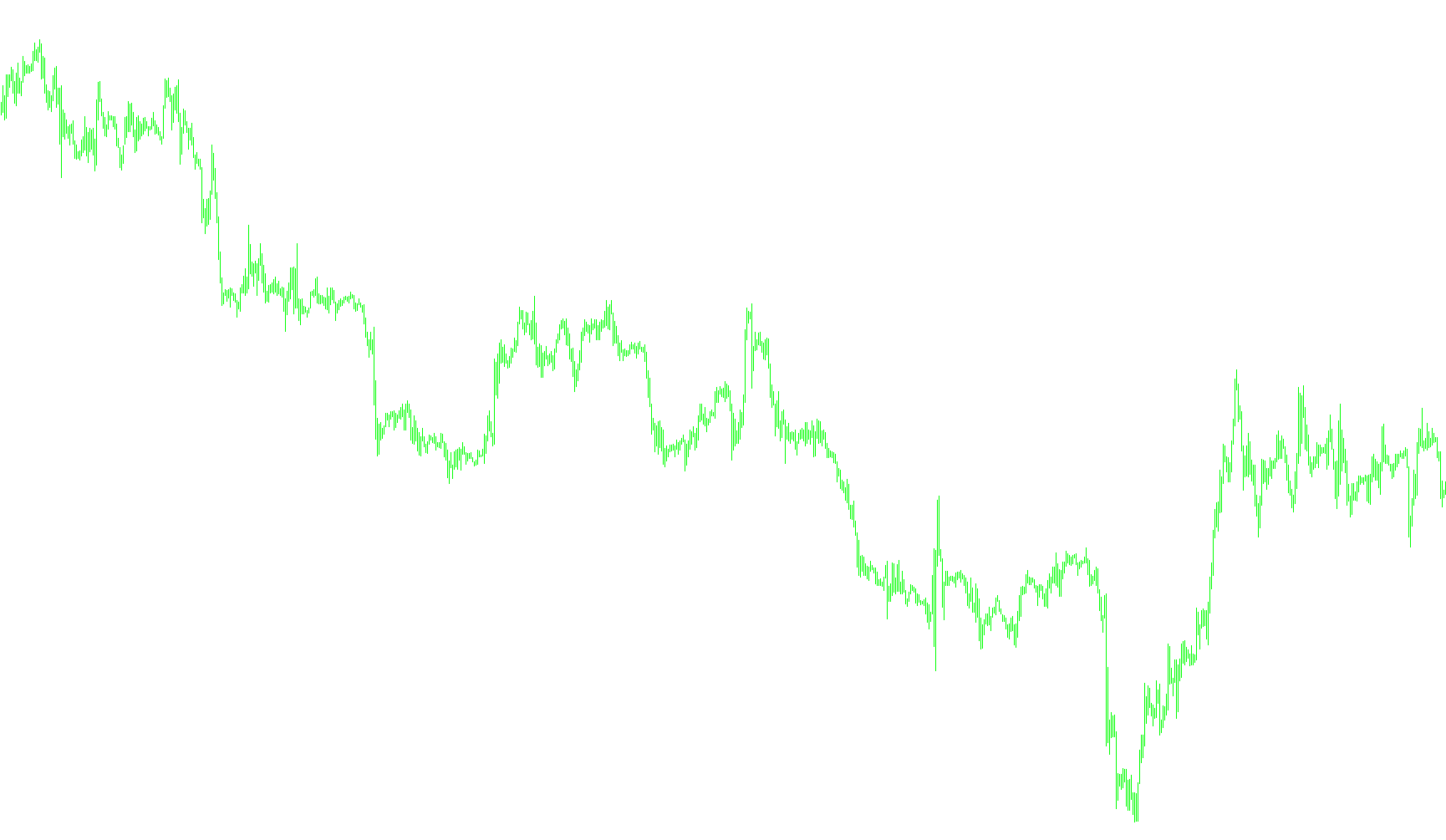

Visual Representation

On your chart, the script provides three distinct visual layers:

  • The Target: Shows where the price actually went in historical data (to help you see how well the model was learning).
  • The Prediction: A visual line showing where the neural network believes the price is heading in the immediate future.
  • The Actual Price: The real-time market movement, allowing for a side-by-side comparison between reality and the model's "forecast."

By combining complex mathematics (Neural Networks), natural sequences (Fibonacci), and historical analysis, this script attempts to provide a data-driven forecast of where price trends may lead.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1
9 Views
0 Downloads
0 Favorites
BPNN Predictor with Smoothing
//+--------------------------------------------------------------------------------------+
//|                                                                   BPNN Predictor.mq4 |
//|                                                               Copyright © 2009, gpwr |
//|                                                                   vlad1004@yahoo.com |
//+--------------------------------------------------------------------------------------+
#property copyright "Copyright © 2009, gpwr"
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Red
#property indicator_width1 2
#property indicator_color2 Blue
#property indicator_width2 2
#property indicator_color3 Black
#property indicator_width3 2

//Global constants
#define pi 3.141592653589793238462643383279502884197169399375105820974944592

//======================================= DLL ============================================
#import "BPNN.dll"
string Train(
   double inpTrain[], // Input training data (1D array carrying 2D data, old first)
   double outTarget[],// Output target data for training (2D data as 1D array, oldest 1st)
   double outTrain[], // Output 1D array to hold net outputs from training
   int    ntr,        // # of training sets
   int    UEW,        // Use Ext. Weights for initialization (1=use extInitWt, 0=use rnd)
   double extInitWt[],// Input 1D array to hold 3D array of external initial weights
   double trainedWt[],// Output 1D array to hold 3D array of trained weights
	int    numLayers,  // # of layers including input, hidden and output
	int    lSz[],      // # of neurons in layers. lSz[0] is # of net inputs
	int    AFT,        // Type of neuron activation function (0:sigm, 1:tanh, 2:x/(1+x))
	int    OAF,        // 1 enables activation function for output layer; 0 disables
	int    nep,        // Max # of training epochs
	double maxMSE      // Max MSE; training stops once maxMSE is reached
	);

string Test(
   double inpTest[],  // Input test data (2D data as 1D array, oldest first)
   double outTest[],  // Output 1D array to hold net outputs from training (oldest first)
   int    ntt,        // # of test sets
   double extInitWt[],// Input 1D array to hold 3D array of external initial weights
	int    numLayers,  // # of layers including input, hidden and output
	int    lSz[],      // # of neurons in layers. lSz[0] is # of net inputs
   int    AFT,        // Type of neuron activation function (0:sigm, 1:tanh, 2:x/(1+x))
	int    OAF         // 1 enables activation function for output layer; 0 disables
	);
#import

//===================================== INPUTS ===========================================

extern int    lastBar     =0;     // Last bar in the past data
extern int    futBars     =10;    // # of future bars to predict
extern int    smoothPer   =6;     // Smoothing period
extern int    numLayers   =3;     // # of layers including input, hidden & output (2..6)
extern int    numInputs   =12;    // # of inputs
extern int    numNeurons1 =5;     // # of neurons in the first hidden or output layer
extern int    numNeurons2 =1;     // # of neurons in the second hidden or output layer
extern int    numNeurons3 =0;     // # of neurons in the third hidden or output layer
extern int    numNeurons4 =0;     // # of neurons in the fourth hidden or output layer
extern int    numNeurons5 =0;     // # of neurons in the fifth hidden or output layer
extern int    ntr         =500;   // # of training sets
extern int    nep         =1000;  // Max # of epochs
extern int    maxMSEpwr   =-20;   // sets maxMSE=10^maxMSEpwr; training stops < maxMSE
extern int    AFT         =2;     // Type of activ. function (0:sigm, 1:tanh, 2:x/(1+x))

//======================================= INIT ===========================================
//Indicator buffers
double pred[],trainedOut[],targetOut[];

//Global variables
int lb,nf,nin,nout,lSz[],prevBars,fdMax;
double maxMSE;

int init()
{
// Create 1D array describing NN --------------------------------------------------------+
   ArrayResize(lSz,numLayers);
   lSz[0]=numInputs;
   lSz[1]=numNeurons1;
   if(numLayers>2)
   {
      lSz[2]=numNeurons2;
      if(numLayers>3)
      {
         lSz[3]=numNeurons3;
         if(numLayers>4)
         {
            lSz[4]=numNeurons4;
            if(numLayers>5) lSz[5]=numNeurons5;
         }
      }
   }

// Use shorter names for some external inputs -------------------------------------------+
   lb=lastBar;
   nf=futBars;
   nin=numInputs;
   nout=lSz[numLayers-1];
   maxMSE=MathPow(10.0,maxMSEpwr);
   prevBars=Bars-1;

// Find maximum Fibonacci delay ---------------------------------------------------------+
   int fd2=0;
   int fd1=1;
   for(int j=0;j<nin;j++)
   {
      int fd=fd1+fd2;
      fd2=fd1;
      fd1=fd;
   }
   fdMax=fd1;

// Set indicator properties -------------------------------------------------------------+
   IndicatorBuffers(3);
   SetIndexBuffer(0,pred);
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(1,trainedOut);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,2);
   SetIndexBuffer(2,targetOut);
   SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,2);
   SetIndexShift(0,nf-lb); // future data vector i=0..nf; nf corresponds to bar=lb
   IndicatorShortName("BPNN");
   return(0);
}

//===================================== DEINIT ===========================================
int deinit(){return(0);}

//===================================== START ============================================
int start()
{
   if(prevBars<Bars){
   prevBars=Bars;
// Check NN and find the total number of weights ----------------------------------------+
   if(numLayers>6)
   {
      Print("The maximum number of layers is 6");
      return;
   }
   for(int i=0;i<numLayers;i++)
   {
      if(lSz[i]<=0)
      {
         Print("No neurons in layer # "+DoubleToStr(i,0)+
            ". Either reduce # of layers or add neurons to this layer");
         return;
      }
   }
   int nw=0; // total number of weights
   for(i=1;i<numLayers;i++)			   // for each layer except input
      for(int j=0;j<lSz[i];j++)			// for each neuron in current layer
         for(int k=0;k<=lSz[i-1];k++)	// for each input of current neuron including bias
				nw++;

// Prepare input data for training ------------------------------------------------------+
   double x[],inpTrain[],outTarget[],extInitWt[];
   int n=ntr+fdMax+1;
   ArrayResize(x,n);
   ArrayResize(inpTrain,ntr*nin);
   ArrayResize(outTarget,ntr*nout);
   ArrayResize(extInitWt,nw);

	// The input data is arranged as follows:
	//
	// inpTrain[i*nin+j]
	//------------------
	//      j= 0...nin-1
	//            |
	// i=0     <inputs>
	// ...     <inputs>
	// i=ntr-1 <inputs>
	//
	// outTarget[i*nout+j]
	//--------------------
	//      j= 0...nout-1
	//             |
	// i=0     <targets>
	// ...     <targets>
	// i=ntr-1 <targets>
   //
	// <inputs> start with the oldest value first

   // First smooth prices
   for(i=0;i<n;i++) x[i]=iMA(NULL,0,smoothPer,0,MODE_EMA,PRICE_MEDIAN,lb+i);

	// Fill in the input arrays with data; in this example nout=1
   for(i=ntr-1;i>=0;i--)
   {
      outTarget[i]=(x[ntr-1-i]/x[ntr-i]-1.0);
      int fd2=0;
      int fd1=1;
      for(j=nin-1;j>=0;j--)
      {
         int fd=fd1+fd2; // use Fibonacci delays: 1,2,3,5,8,13,21,34,55,89,144...
         fd2=fd1;
         fd1=fd;
         inpTrain[i*nin+j]=x[ntr-i]/x[ntr-i+fd]-1.0;
      }
   }

// Train NN -----------------------------------------------------------------------------+
   double outTrain[],trainedWt[];
   ArrayResize(outTrain,ntr*nout);
   ArrayResize(trainedWt,nw);

   // The output data is arranged as follows:
	//
	// outTrain[i*nout+j]
	//      j= 0...nout-1
	//             |
	// i=0     <outputs>
	// ...     <outputs>
	// i=ntr-1 <outputs>

   string status=Train(inpTrain,outTarget,outTrain,ntr,0,extInitWt,trainedWt,numLayers,
      lSz,AFT,0,nep,maxMSE);
   Print(status);
   // Store trainedWt[] as extInitWt[] for next training
   int iw=0;
   for(i=1;i<numLayers;i++)			// for each layer except input
      for(j=0;j<lSz[i];j++)			// for each neuron in current layer
         for(k=0;k<=lSz[i-1];k++)	// for each input of current neuron including bias
         {
				extInitWt[iw]=trainedWt[iw];
				//Print("w = "+DoubleToStr(extInitWt[iw],5));
				iw++;
		   }

   // Show how individual net outputs match targets
   for(i=0;i<ntr;i++)
   {
      targetOut[lb+i]=x[i];
      trainedOut[lb+i]=(1.0+outTrain[ntr-1-i])*x[i+1];
      //Print("Net output: "+DoubleToStr(outTrain[i],5)
         //+", target: "+DoubleToStr(outTarget[i],5));
   }


// Test NN ------------------------------------------------------------------------------+
   double inpTest[],outTest[];
   ArrayResize(inpTest,nin);
   ArrayResize(outTest,nout);

   // The input data is arranged as follows:
	//
   // inpTest[i*nin+j]
	//-----------------
	//      j= 0...nin-1
	//            |
	// i=0     <inputs>
	// ...     <inputs>
	// i=ntt-1 <inputs>
	//
	// <inputs> start with the oldest value first
	//
   // The output data is arranged as follows:
	//
	// outTest[i*nout+j]
	//------------------
	//      j= 0...nout-1
	//             |
	// i=0     <outputs>
	// ...     <outputs>
	// i=ntt-1 <outputs>

	pred[nf]=x[0];
	for(i=0;i<nf;i++)
	{
      fd2=0;
      fd1=1;
      for(j=nin-1;j>=0;j--)
      {
         fd=fd1+fd2; // use Fibonacci delays: 1,2,3,5,8,13,21,34,55,89,144...
         fd2=fd1;
         fd1=fd;
         double o,od;
         if(i>0) o=pred[nf-i];
         else o=x[0];
         if(i-fd>0) od=pred[nf-i+fd];
         else od=x[fd-i];
         inpTest[j]=o/od-1.0;
      }
      status=Test(inpTest,outTest,1,extInitWt,numLayers,lSz,AFT,0);
      pred[nf-i-1]=pred[nf-i]*(outTest[0]+1.0); // predicted next open
   }
   }
   return;
}
