BLines_Profi_en_v2

This tool is designed to provide traders with a visual framework for identifying key price levels by calculating "Balance Points" and associated support and resistance zones. It operates by analyzing historical price data across different timeframes simultaneously, allowing users to see how significant price structures align between short-term and long-term perspectives.

Core Logic and Functionality

The script functions by calculating four primary types of data points: Static Balance, Dynamic Balance, Static Steps, and Dynamic Steps. Each of these serves a specific role in interpreting market equilibrium.

1. Balancing the Market (Static vs. Dynamic)

  • Static Balance: The tool identifies a "base" price for a larger time period (determined by your user settings). It looks at the highest and lowest prices reached during that period and calculates a central balance point based on the closing price. Because it is "static," this line remains constant until the higher timeframe cycle completes.
  • Dynamic Balance: Unlike the static version, the dynamic balance updates more frequently. It calculates a balance point based on recent price action, allowing the trader to see how the current market "weight" is shifting in real-time relative to the larger trend.

2. Support and Resistance Zones (Fibonacci Integration)

For both the Static and Dynamic balance points, the script automatically projects key support and resistance levels using a Fibonacci coefficient (defaulting to 0.618).

  • If the price is above these levels, they act as potential "floors" (support).
  • If the price is below these levels, they act as potential "ceilings" (resistance). By visualizing these alongside the balance points, the tool helps identify areas where the market might stall or reverse.

3. Multi-Step Analysis (The "Range" Logic)

The script does not look at a single data point in isolation; it uses a "Range" parameter to calculate an average of multiple balance levels.

  • Static Steps: It averages the balance points across a specific number of periods to create a smoothed, stepped progression. This helps filter out "noise" and shows the broader path of the market.
  • Dynamic Steps: This is a more complex calculation that synchronizes the current timeframe's movement with the higher timeframe's steps. It ensures that as the price moves, the "steps" shown on your chart remain mathematically consistent with the larger trend.

Technical Behavior for the User

  • Timeframe Synchronization: The tool requires you to choose a higher timeframe than the one currently displayed on your chart. It then does the mathematical "heavy lifting" to project that higher timeframe's data onto your current view.

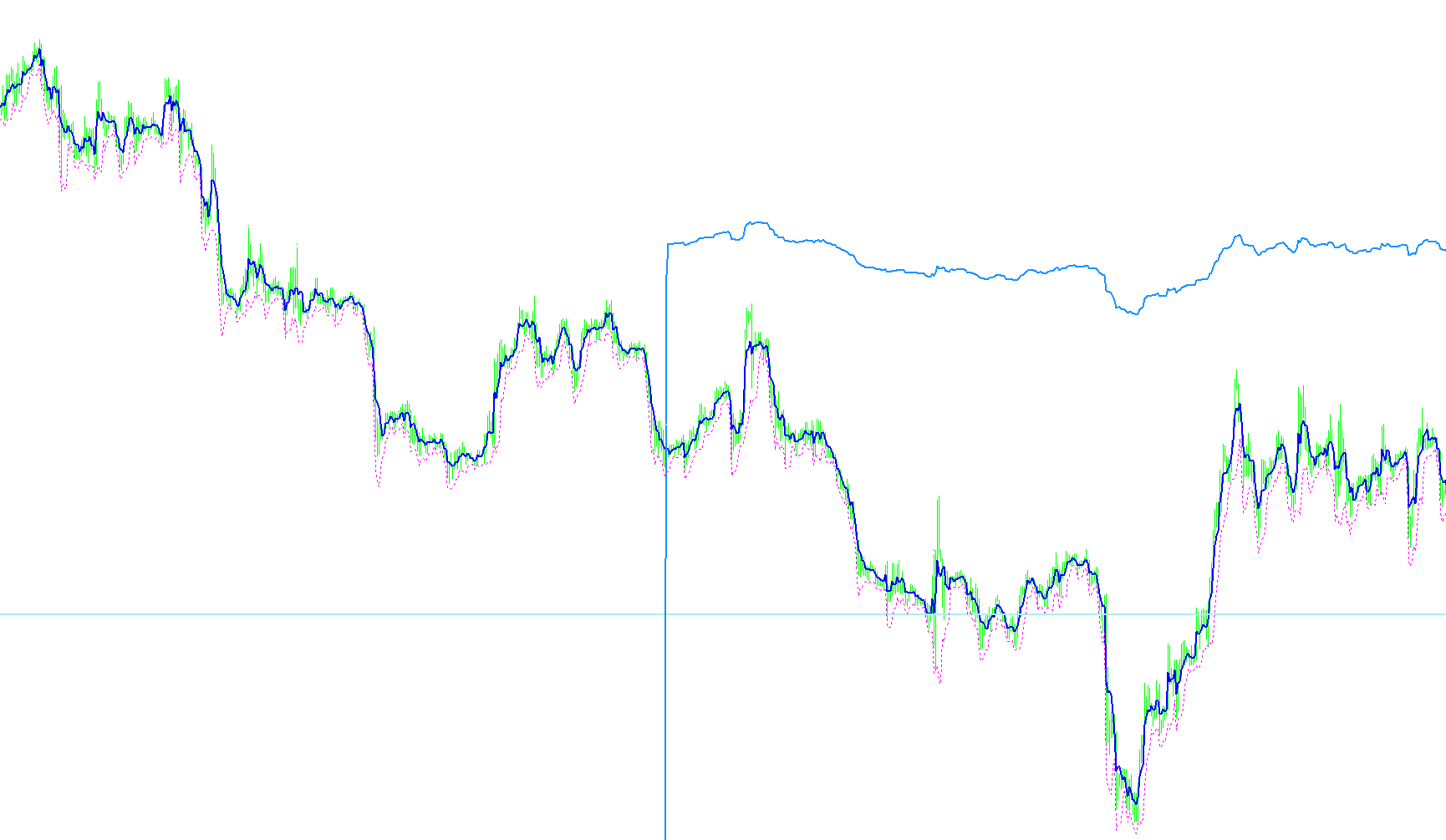

  • Visual Feedback: The script draws these levels as solid and dotted lines. Solid lines typically represent the primary balance points, while dotted lines represent the Fibonacci-based support and resistance boundaries.
  • Data Smoothing: By using "Step" logic, the tool prevents the chart from becoming cluttered with constant jumping lines, providing a cleaner visualization of where the market is finding its equilibrium over time.
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
10 Views
0 Downloads
0 Favorites
BLines_Profi_en_v2
//+------------------------------------------------------------------+
//|                                              BLines_Profi_v1.mq4 |
//|                                                          Profi_R |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link      "Profi_R"
//----
#property indicator_chart_window
#property indicator_buffers 8
#property indicator_color1 Blue
#property indicator_color2 DodgerBlue
#property indicator_color3 Yellow
#property indicator_color4 Yellow
#property indicator_color5 Black
#property indicator_color6 White
#property indicator_color7 Black
#property indicator_color8 White
//---- input parameters
extern int       Range=5;
extern int       NextTF=240;
extern double    FiboLevel=0.618;
//---- buffers
double StBPoint[];
double DBPoint[];
double StBStep[];
double DBStep[];
double StSupport[];
double DSupport[];
double StResistance[];
double DResistance[];
//----
int d_b,Displacement;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(1,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(3,DRAW_LINE,STYLE_SOLID,2);
   SetIndexStyle(4,DRAW_LINE,STYLE_DOT);
   SetIndexStyle(5,DRAW_LINE,STYLE_DOT);
   SetIndexStyle(6,DRAW_LINE,STYLE_DOT);
   SetIndexStyle(7,DRAW_LINE,STYLE_DOT);
   SetIndexBuffer(0,StBPoint);
   SetIndexBuffer(1,DBPoint);
   SetIndexBuffer(2,StBStep);
   SetIndexBuffer(3,DBStep);
   SetIndexBuffer(4,StSupport);
   SetIndexBuffer(5,DSupport);
   SetIndexBuffer(6,StResistance);
   SetIndexBuffer(7,DResistance);
   SetIndexLabel(0,"Static level of balance");
   SetIndexLabel(1,"Dynamic level of balance");
   SetIndexLabel(2,"Static steps of balance");
   SetIndexLabel(3,"Dynamic steps of balance");
   SetIndexLabel(4,"Static level of support (Fibo"+FiboLevel*100+"%)");
   SetIndexLabel(5,"Dynamic level of support (Fibo"+FiboLevel*100+"%)");
   SetIndexLabel(6,"Static level of resistance (Fibo"+FiboLevel*100+"%)");
   SetIndexLabel(7,"Dynamic level of resistance (Fibo"+FiboLevel*100+"%)");
   string short_name;
   short_name="Lines of balance ("+Range+","+NextTF+","+FiboLevel*100+")";
   IndicatorShortName(short_name);
   if(NextTF>Period() )
     {
      d_b=Range*NextTF/Period();
      if(NextTF<10080)
        {
         Displacement=NextTF/Period();
        }
      else
        {
         if(NextTF==10080 )
           {
            Displacement=7200/Period();
           }
         else
           {
            if(NextTF==43200 )
              {
               Displacement=31680/Period();
              }
           }
        }
     }
   else
     {
      return(-1);
     }
   SetIndexDrawBegin(0,d_b);
   SetIndexDrawBegin(1,d_b);
   SetIndexDrawBegin(2,d_b);
   SetIndexDrawBegin(3,d_b);
   SetIndexDrawBegin(4,d_b);
   SetIndexDrawBegin(5,d_b);
   SetIndexDrawBegin(6,d_b);
   SetIndexDrawBegin(7,d_b);
   SetIndexShift(0,Displacement);
   SetIndexShift(2,Displacement);
   SetIndexShift(4,Displacement);
   SetIndexShift(6,Displacement);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int cb,limit,sbb_index,sbb_Aux_i,sbe_Aux_i,i;
   int counted_bars=IndicatorCounted();
   datetime Corresp_bbbnTime;
   double StHigh,StLow,DHigh,DLow,SStBStep,SDBStep;
//----
   if(NextTF<=Period() )
     {
      Alert("Incorrect parameter NextTF, it should be more current TF!");
      return(-1);
     }
   if(counted_bars<0 )
     {
      return(-1);
     }
   else
     {
      if(Bars-1-counted_bars>Bars-1-d_b )
        {
         limit=Bars-1-d_b;
        }
      else
        {
         if(Bars-1-counted_bars>=0 )
           {
            limit=Bars-1-counted_bars;
           }
         else
           {
            limit=0;
           }
        }
     }
   limit=Bars-1-counted_bars;
//----
   for(cb=limit;cb>=0;cb--)
     {
      Corresp_bbbnTime=NormTimeBarBegin(Time[cb],NextTF);
      sbb_index=n_iBarShift(Corresp_bbbnTime,Period());
      StHigh=High[Highest(NULL,0,MODE_HIGH,sbb_index-cb+1,cb)];
      StLow=Low[Lowest(NULL,0,MODE_LOW,sbb_index-cb+1,cb)];
      StBPoint[cb]=MathRound((Close[cb]+StHigh+StLow)/3/Point)*Point;
      StSupport[cb]=StBPoint[cb]-MathRound((StHigh-StLow)*FiboLevel/Point)*Point;
      StResistance[cb]=StBPoint[cb]+MathRound((StHigh-StLow)*FiboLevel/Point)*Point;
      if(cb<sbb_index )
        {
         for(i=cb+1;i<=sbb_index;i++)
           {
            StBPoint[i]=StBPoint[cb];
            StSupport[i]=StSupport[cb];
            StResistance[i]=StResistance[cb];
           }
        }
      DHigh=High[Highest(NULL,0,MODE_HIGH,Displacement,cb)];
      DLow=Low[Lowest(NULL,0,MODE_LOW,Displacement,cb)];
      DBPoint[cb]=MathRound((Close[cb]+DHigh+DLow)/3/Point)*Point;
      DSupport[cb]=DBPoint[cb]-MathRound((DHigh-DLow)*FiboLevel/Point)*Point;
      DResistance[cb]=DBPoint[cb]+MathRound((DHigh-DLow)*FiboLevel/Point)*Point;
      SStBStep=StBPoint[cb];
      sbe_Aux_i=sbb_index+1;
      for(i=1;i<Range;i++)
        {
         Corresp_bbbnTime=NormTimeBarBegin(Time[sbe_Aux_i],NextTF);
         sbb_Aux_i=n_iBarShift(Corresp_bbbnTime,Period());
         SStBStep+=StBPoint[sbb_Aux_i];
         sbe_Aux_i=sbb_Aux_i+1;
        }
      StBStep[cb]=MathRound(SStBStep/Range/Point)*Point;
      if(cb<sbb_index )
        {
         for(i=cb+1;i<=sbb_index;i++)
           {
            StBStep[i]=StBStep[cb];
           }
        }
      SDBStep=DBPoint[cb];
      datetime sbbt_dif,bbbt_aux_b,bbbt_aux_s,t_aux;
      int i_aux;
      sbbt_dif=NormTimeBarBegin(Time[cb],Period())-NormTimeBarBegin(Time[cb],NextTF);
      for(i=1;i<Range;i++)
        {
         bbbt_aux_b=NormTimeBarBegin(iTime(NULL,NextTF,n_iBarShift(Time[cb],NextTF)+i),NextTF);
         bbbt_aux_s=NormTimeBarBegin(Time[cb+i*Displacement],NextTF);
         if(bbbt_aux_b!=bbbt_aux_s )
           {
            t_aux=MathMax(bbbt_aux_b,bbbt_aux_s);
            i_aux=n_iBarShift(t_aux+sbbt_dif,Period());
           }
         else
           {
            i_aux=n_iBarShift(bbbt_aux_b+sbbt_dif,Period());
           }
         SDBStep+=DBPoint[i_aux];
        }
      DBStep[cb]=MathRound(SDBStep/Range/Point)*Point;
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
datetime NormTimeBarBegin(datetime intime, int TF)
  {
//----
   datetime outtime;
   if(TF!=10080)
     {
      outtime=MathFloor(intime/TF/60)*TF*60;
     }
   else
     {
      outtime=MathFloor((intime+345600)/TF/60)*TF*60-345600;
     }
//----
   return(outtime);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int n_iBarShift(datetime intime, int TF)
  {
//----
   int bindex,b_count;
   datetime TArray[];
   b_count=ArrayCopySeries(TArray,MODE_TIME,Symbol(),TF);
   if(b_count<1 )
     {
      Alert("Íåõâàòêà äàííûõ!");
     }
   else
     {
      bindex=ArrayBsearch(TArray,NormTimeBarBegin(intime,TF),0,0,MODE_ASCEND) ;
     }
//----
   return(bindex);
  }
//+------------------------------------------------------------------+
