Technical Overview: BH-Ergodic Indicator
The BH-Ergodic indicator is a sophisticated technical analysis tool designed to measure market momentum and directional strength by analyzing the relationship between price changes and their absolute magnitude. Unlike standard moving averages that simply track price, this script focuses on "volatility-adjusted" movement to identify whether the current trend is gaining or losing intensity.
Core Logic and Methodology
The logic operates through a multi-layered smoothing process, transitioning from raw price data to a refined signal. Here is the step-by-step breakdown of how the indicator processes information:
1. Price Delta Calculation The script begins by calculating two primary values based on your chosen price type (e.g., Close, High, Low, etc.):
- Directional Delta: The difference between the current price and a previous price point. This tells us which way the market is moving.
- Absolute Delta: The absolute value of that same difference. This measures the "size" or "strength" of the move, regardless of direction.
2. Multi-Stage Smoothing (The Ergodic Approach) To filter out market "noise," the script applies three successive layers of Exponential Moving Averages (EMA) to both the Directional Delta and the Absolute Delta:
- First Layer: Captures immediate trends.
- Second Layer: Smooths the initial trends to identify medium-term momentum.
- Third Layer: Provides a broader view of market behavior, helping to stabilize the data for the final calculation.
3. The Ergodic Ratio The heart of the indicator is a mathematical division. It takes the smoothed directional movement and divides it by the smoothed absolute movement (multiplied by a factor of 100).
- By dividing direction by magnitude, the indicator essentially calculates the efficiency of the move.
- This helps distinguish between a "strong" move (where price is moving decisively in one direction) and a "weak" or "choppy" move (where price is moving a lot but oscillating back and forth).

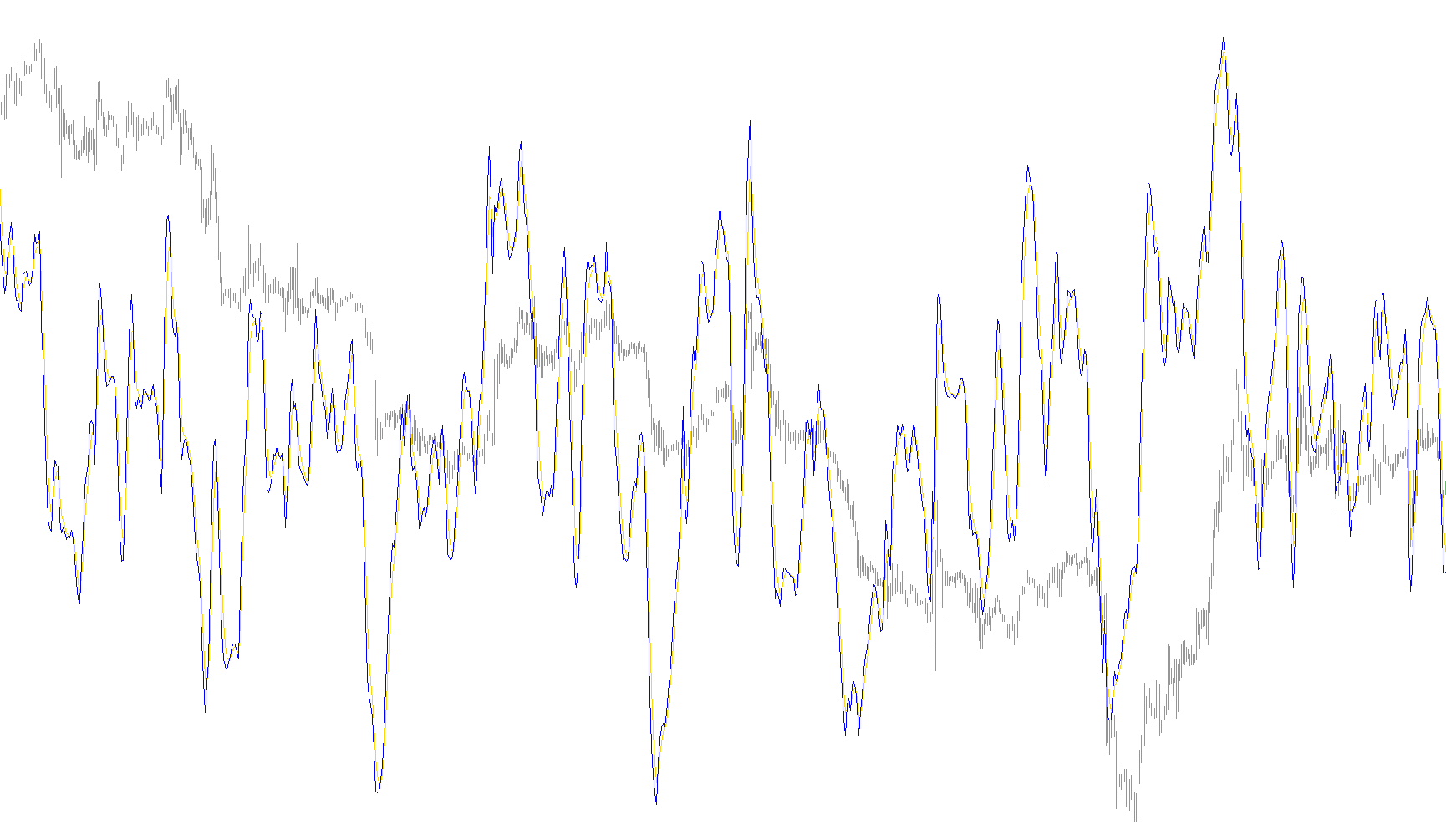

4. Final Signal Generation The final step involves applying one last smoothing layer to the resulting Ergodic ratio to create a clean visual line. The indicator then compares this final smoothed line against the raw Ergodic value:
- Long Signal: Occurs when the smoothed trend is below the current ergodic value, suggesting upward momentum.
- Short Signal: Occurs when the smoothed trend is above the current ergodic value, suggesting downward momentum.
- Neutral: Occurs when the values are aligned, indicating a lack of clear directional bias.
Summary for Traders
In essence, this tool tells you not just where the price is going, but how strongly it is moving there relative to its recent volatility. By filtering out the "noise" of minor fluctuations through multiple layers of averaging, it aims to provide a clearer picture of underlying market intent.
//-------------------------------------------------------------------
// MetaTrader4 Indicator BH-Ergodic.mq4
// 2007, Bruce Hellstrom
// bhweb@speakeasy.net
// Version: 1.0
// Version Date: 15 Apr 2007
// Last change by: bruceh
// Based on code written by Danny Feng, Ergodic.mq4
//+-------------------------------------------------------------------
#property copyright "2007 Brucehvn, bhweb@speakeasy.net"
#property link "http: //www.metaquotes.net"
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 DarkTurquoise
#property indicator_color2 Yellow
#property indicator_style1 0
#property indicator_style2 2
//---- input parameters
extern int BarDiff = 1; // calculations are taken between current bar and current bar + BarDiff
extern int r = 2; // First moving average on mean values
extern int s = 10; // Second moving average applied to first
extern int u = 5; // Third moving average applied to division
extern int trigger = 3; // Final moving average or smoothing
extern int PriceType = 0; // 0=Close, 1=Open, 2=High, 3=Low, 4=Median, 5=Typical, 6=Weighted
//---- buffers
double ErgBuffer[];
double ema_ErgBuffer[];
double Price_Delta1_Buffer[];
double Price_Delta2_Buffer[];
double r_ema1_Buffer[];
double r_ema2_Buffer[];
double s_ema1_Buffer[];
double s_ema2_Buffer[];
string ShortNameBase = "";
string IndVersion = "1.0";
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init() {
ShortNameBase = "BH-Ergodic v" + IndVersion + " (" + r + "," + s + "," + u + ") Trigger(" + trigger + ")";
//---- additional buffers are used for counting.
IndicatorBuffers( 8 );
SetIndexBuffer( 0, ema_ErgBuffer );
SetIndexLabel( 0, "Trigger" );
SetIndexBuffer( 1, ErgBuffer );
SetIndexLabel( 1, "Ergodic" );
SetIndexBuffer( 2, Price_Delta1_Buffer );
SetIndexBuffer( 3, Price_Delta2_Buffer );
SetIndexBuffer( 4, r_ema1_Buffer );
SetIndexBuffer( 5, r_ema2_Buffer );
SetIndexBuffer( 6, s_ema1_Buffer );
SetIndexBuffer( 7, s_ema2_Buffer );
//---- indicator lines
SetIndexStyle( 0, DRAW_LINE );
SetIndexStyle( 1, DRAW_LINE );
//---- name for DataWindow and indicator subwindow label
IndicatorShortName( ShortNameBase );
//----
SetIndexDrawBegin( 0, r + s + u + trigger );
SetIndexDrawBegin( 1, r + s + u + trigger );
//----
Print( ShortNameBase );
Print( "2007 - brucehvn, bhweb@speakeasy.net" );
return( 0 );
}
//+------------------------------------------------------------------+
//| True Strength Index |
//+------------------------------------------------------------------+
int start() {
int i, limit;
double mean1, mean2;
if ( PriceType < PRICE_CLOSE || PriceType > PRICE_WEIGHTED ) {
PriceType = PRICE_CLOSE;
}
int counted_bars = IndicatorCounted();
if ( counted_bars > 0 ) {
counted_bars--;
}
limit = Bars - counted_bars;
for ( i = 0; i < limit; i++ ) {
switch( PriceType ) {
case PRICE_CLOSE:
mean1 = Close[i];
mean2 = Close[i+BarDiff];
break;
case PRICE_OPEN:
mean1 = Open[i];
mean2 = Open[i+BarDiff];
break;
case PRICE_HIGH:
mean1 = High[i];
mean2 = High[i+BarDiff];
break;
case PRICE_LOW:
mean1 = Low[i];
mean2 = Low[i+BarDiff];
break;
case PRICE_MEDIAN:
mean1 = ( High[i] - Low[i] ) / 2;
mean2 = ( High[i+BarDiff] - Low[i+BarDiff] ) / 2;
break;
case PRICE_TYPICAL:
mean1 = ( High[i] + Low[i] + Close[i] ) / 3;
mean2 = ( High[i+BarDiff] + Low[i+BarDiff] + Close[i+BarDiff] ) / 3;
break;
case PRICE_WEIGHTED:
mean1 = ( High[i] + Low[i] + Close[i] + Close[i] ) / 4;
mean2 = ( High[i+BarDiff] + Low[i+BarDiff] + Close[i+BarDiff] + Close[i+BarDiff] ) / 4;
break;
}
Price_Delta1_Buffer[i] = mean1 - mean2;
Price_Delta2_Buffer[i] = MathAbs( mean1 - mean2 );
}
for ( i = 0; i < limit; i++ ) {
r_ema1_Buffer[i] = iMAOnArray( Price_Delta1_Buffer, Bars, r, 0, MODE_EMA, i );
r_ema2_Buffer[i] = iMAOnArray( Price_Delta2_Buffer, Bars, r, 0, MODE_EMA, i );
}
for ( i = 0; i < limit; i++ ) {
s_ema1_Buffer[i] = iMAOnArray( r_ema1_Buffer, Bars, s, 0, MODE_EMA, i );
s_ema2_Buffer[i] = iMAOnArray( r_ema2_Buffer, Bars, s, 0, MODE_EMA, i );
}
for ( i = 0; i < limit; i++ ) {
double ma1 = iMAOnArray( s_ema1_Buffer, Bars, u, 0, MODE_EMA, i );
double ma2 = iMAOnArray( s_ema2_Buffer, Bars, u, 0, MODE_EMA, i );
if ( ma2 != 0 ) {
ErgBuffer[i] = ( 100 * ma1 ) / ma2;
}
else {
ErgBuffer[i] = 0.0;
}
}
for ( i = 0; i < limit; i++ ) {
ema_ErgBuffer[i] = iMAOnArray( ErgBuffer, Bars, trigger, 0, MODE_EMA, i );
}
string shortname = ShortNameBase;
if ( ema_ErgBuffer[0] > ErgBuffer[0] ) {
shortname = StringConcatenate( shortname, " SHORT" );
}
else if ( ema_ErgBuffer[0] < ErgBuffer[0] ) {
shortname = StringConcatenate( shortname, " LONG" );
}
else {
shortname = StringConcatenate( shortname, " NEUTRAL" );
}
IndicatorShortName( shortname );
return( 0 );
}
//+------------------------------------------------------------------+
