Alex5757000 - Multi Moving Average v2.1
Download script
This script is designed to simplify and declutter your trading charts by consolidating the information from four different Moving Averages (MAs) into a single, easy-to-read visual window. Instead of having multiple lines crossing over each other on your price chart, this tool summarizes the "big picture" trend in a separate area.
Core Functionality
The primary goal of this indicator is to provide a clear view of market trends without crowding your workspace. It achieves this through three main features:
1. Trend Direction and Sentiment The script monitors four independent Moving Averages simultaneously. For each one, it tracks whether the average is currently moving upward or downward.

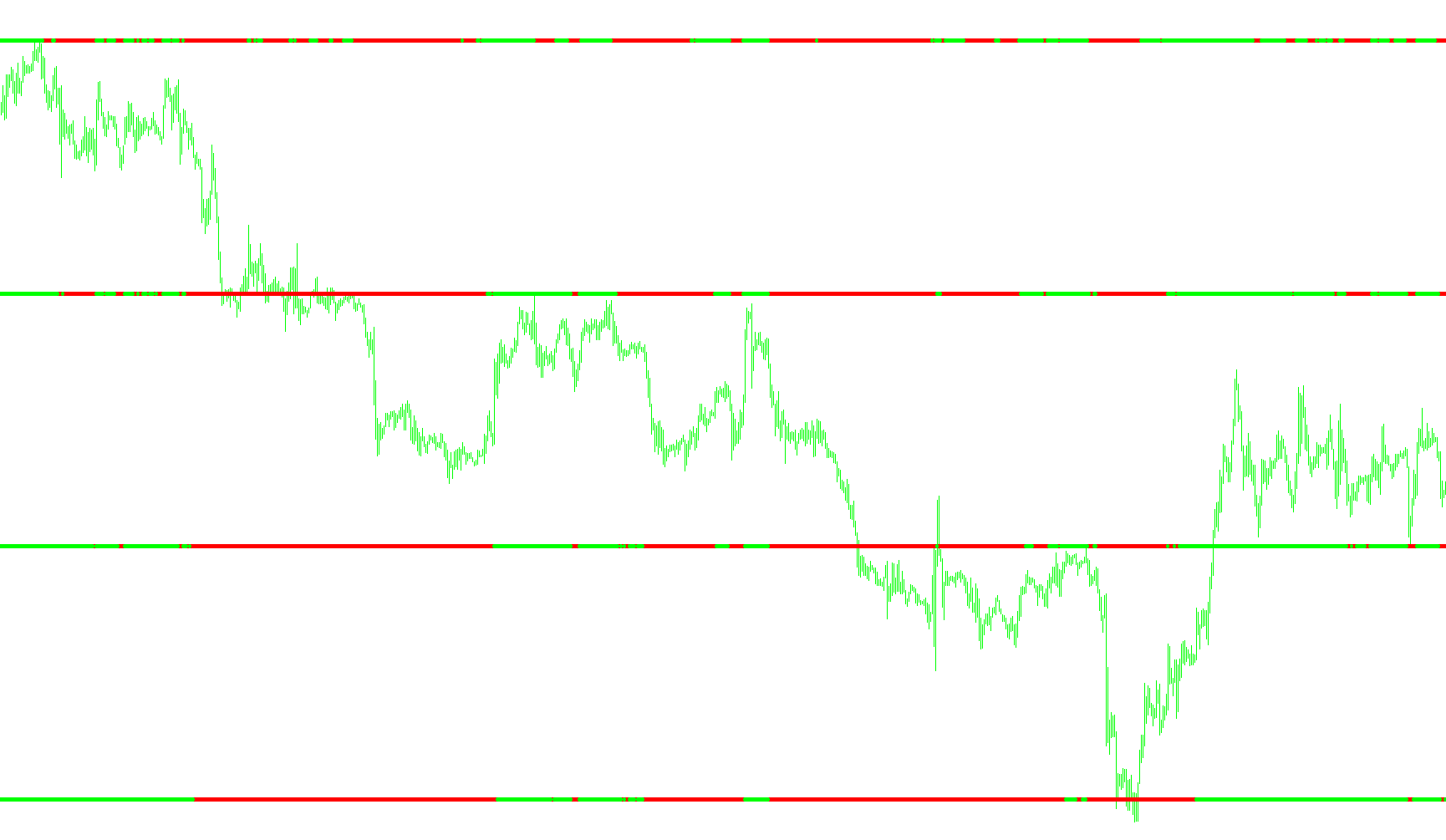

- Visual Indicators: It uses specific symbols (like arrows or dots) to show the direction of each MA.
- Price Relation: It also tracks whether these averages are sitting above or below the current market price, providing a secondary layer of context regarding the current "bias."
2. Confluence Signaling (The "Range" System) One of the most powerful features of this script is its ability to detect confluence.
- Visual Alerts: If all four Moving Averages are moving in the same direction at once, the indicator highlights the display area with a specific color (e.g., filling a zone) to signal a strong trend.
- Audio Alerts: You can enable sound notifications that trigger automatically when all four averages align, notifying you of a potential high-probability move without you having to watch the screen constantly.
3. Multi-Timeframe (MTF) Analysis The tool allows you to monitor different timeframes at once. You can set each of the four Moving Averages to different periods (e.g., one for a short-term view, one for a medium-term view, and two for long-term trends). This helps you see how different "speeds" of the market are reacting to price action simultaneously.
User Experience Features
- Clean Interface: By moving this data into its own window, your main price chart remains clean and free of overlapping lines.
- Customizable Labels: The script provides dynamic text labels that show you exactly which timeframe, calculation method (like SMA or EMA), and price type (like Close or High) each indicator is currently using.
- High Customization: Users can adjust the thickness of lines, colors, symbol types, and the specific position of text labels to fit their personal trading style perfectly.
Summary for the Trader
In short, this script acts as a "trend dashboard." It looks at four different market filters, checks if they agree with each other, and then gives you a clear visual (and audio) signal when they do. It allows you to see where the "heavy" and "light" trends are heading while keeping your main trading screen organized and professional.
Price Data Components
Indicators Used
Miscellaneous
7
Views
0
Downloads
0
Favorites
Alex5757000 - Multi Moving Average v2.1
/*
Àâòîð:
Alex5757000
Îïèñàíèå:
Multi Moving Average v2.1 - èíäèêàòîð, ÿâëÿþùèéñÿ íîâîé âåðñèåé èíäèêàòîðà Multi Moving Average . Ïî âîçìîæíîñòè áûëè ó÷òåíû âñå ïîæåëàíèÿ è ïðîñüáû ó÷àñòíèêîâ ôîðóìà.
Îñíîâíûå íîâîââåäåíèÿ:
Âîçìîæíîñòè MTF.
Âèçóàëüíàÿ ñèãíàëèçàöèÿ î ñîâïàäåíèè íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ.
Çâóêîâàÿ (Alert) ñèãíàëèçàöèÿ î ñîâïàäåíèè íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ.
Èíäèêàòîð î÷åíü óäîáåí â ïëàíå íàñòðîåê:
 ãëîáàëüíûå ïåðåìåííûå âûíåñåíû âõîäíûå ïàðàìåòðû êàæäîé èç ÷åòûðåõ ÌÀ â îòäåëüíîñòè:
Âðåìåííîé èíòåðâàë (Time Frame). 1 = M1; 5 = M5; 15 = M15; 30 = M30; 60 = H1; 240 = H4; 1440 = D1;
Ïåðèîä óñðåäíåíèÿ (Averaging period).
Ìåòîä âû÷èñëåíèÿ ñêîëüçÿùåãî ñðåäíåãî (Averaging method). 0 = SMA; 1 = EMA; 2 = SSMA; 3 = LWMA;
Èñïîëüçóåìàÿ öåíà äëÿ ðàñ÷¸òà ñêîëüçÿùåãî ñðåäíåãî (The type of the price used for calculaton of Moving Average).
0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED
2. Âèçóàëüíàÿ ñèãíàëèçàöèÿ î ñîâïàäåíèè íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ. (Çàëèâêà îáëàñòè èíäèêàòîðà îïð. öâåòîì). (RangeGraphic)
3. Çâóêîâàÿ (Alert) ñèãíàëèçàöèÿ î ñîâïàäåíèè íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ. (RangeAlert)
4. Òèï âèçóàëèçàöèè: 0 = êâàäðàò, 1 = ïðÿìîóãîëüíèê, 2 = òî÷êà. (BarWingdings)
5. Ãèáêèå íàñòðîéêè òåêñòîâîé ìåòêè:
Óñòàíîâêà òåêñòîâûå ìåòêè (ShowLabel).
Âåðòèêàëüíûé ñäâèã òåêñòîâîé ìåòêè (V_Shift).
Ãîðèçîíòàëüíûé ñäâèã òåêñòîâîé ìåòêè (H_Shift).
Îêðàñêà òåêñòîâîé ìåòêè ñóäÿ ïî ïîëîæåíèþ ÌÀ îòíîñèòåëüíî öåíû Bid: âûøå/íèæå.
6. Òàêæå íàñòðîéêà âñåõ öâåòîâ, òîëùèíû ëèíèé è ò.ä.
Èäåÿ èíäèêàòîðà ðîäèëàñü ïðè ïîïûòêå êàê ìîæíî áîëüøå "ðàçãðóçèòü" ãðàôèê öåíû.  ïåðâóþ î÷åðåäü ýòî êàñàëîñü ñêîëüçÿùèõ ñðåäíèõ - íåîáõîäèìî áûëî èõ óáðàòü ñ ÷àðòà è â òî æå âðåìÿ ñîõðàíèòü íåîáõîäèìóþ èíôîðìàöèþ.
Èòàê, äàííûé èíäèêàòîð íîñèò äâå ôóíêöèè:
Îòîáðàæàåò òåêóùåå ñîñòîÿíèå ñêîëüçÿùåãî ñðåäíåãî - ðîñò èëè ïàäåíèå. (îêðàñêà â ñîîòâåòñòâóþùèé öâåò)
Ïîêàçûâàåò ïîëîæåíèå ñêîëüçÿùåãî ñðåäíåãî ïî îòíîøåíèþ ê öåíå (èëè ÌÀ ñ ïåðèîäîì 1) - âûøå èëè íèæå. (îêðàñêà òåêñòîâîé ìåòêè â ñîîòâåòñòâóþùèé öâåò)
Òàêèì îáðàçîì, çàäàâ ïåðèîäû ÌÀøåê "ïîòÿæåëåå" è "ïîëåã÷å", ìîæíî ñóäèòü îá îáùåé òåíäåíöèè íà ðûíêå, îñòàâèâ ïðè ýòîì ãðàôèê öåíû ñâîáîäíûì!
//<---->
Òàêæå, åñëè Âû õîòèòå àâòîìàòèçèðîâàòü ñâîþ òîðãîâëþ è íóæäàåòåñü â óñëóãàõ áèðæåâîãî ïðîãðàììèñòà, Âû ìîæåòå ñâÿçàòüñÿ ñî ìíîé. ×òîáû óâèäåòü ìîþ êîíòàêòíóþ èíôîðìàöèþ, óñòàíîâèòå ShowIntro = True;
*/
//+------------------------------------------------------------------+
//| Alex5757000 - Multi Moving Average v2.1.mq4 |
//| Copyright © 2010, Alex5757000, Alexander S. Sovpel' |
//| E-mail : Alex5757000@yandex.ru |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2010, Alex5757000, Ñîâïåëü Àëåêñàíäð Ñåðãååâè÷"
#property link "E-mail: Alex5757000@yandex.ru"
#property indicator_separate_window
#property indicator_minimum 1.0
#property indicator_maximum 4.0
#property indicator_buffers 8
#property indicator_color1 Lime
#property indicator_color2 Red
#property indicator_color3 Lime
#property indicator_color4 Red
#property indicator_color5 Lime
#property indicator_color6 Red
#property indicator_color7 Lime
#property indicator_color8 Red
extern bool ShowIntro = false;
extern string MA_1 = "The input parameters of the 1st moving average";
extern int MA_1_TF = 1; // Âðåìåííîé èíòåðâàë (Time Frame). 1 = M1; 5 = M5; 15 = M15; 30 = M30; 60 = H1; 240 = H4; 1440 = D1;
extern int MA_1_Period = 21; // Ïåðèîä óñðåäíåíèÿ (Averaging period).
extern int MA_1_Mode = MODE_EMA; // Ìåòîä âû÷èñëåíèÿ ñêîëüçÿùåãî ñðåäíåãî (Averaging method). 0 = SMA; 1 = EMA; 2 = SSMA; 3 = LWMA;
extern int MA_1_Price = PRICE_WEIGHTED; /* Èñïîëüçóåìàÿ öåíà äëÿ ðàñ÷¸òà ñêîëüçÿùåãî ñðåäíåãî (The type of the price used for calculaton of Moving Average).
0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED */
extern string MA_2 = "The input parameters of the 2nd moving average";
extern int MA_2_TF = 1; // Âðåìåííîé èíòåðâàë (Time Frame). 1 = M1; 5 = M5; 15 = M15; 30 = M30; 60 = H1; 240 = H4; 1440 = D1;
extern int MA_2_Period = 55; // Ïåðèîä óñðåäíåíèÿ (Averaging period).
extern int MA_2_Mode = MODE_EMA; // Ìåòîä âû÷èñëåíèÿ ñêîëüçÿùåãî ñðåäíåãî (Averaging method). 0 = SMA; 1 = EMA; 2 = SSMA; 3 = LWMA;
extern int MA_2_Price = PRICE_WEIGHTED; /* Èñïîëüçóåìàÿ öåíà äëÿ ðàñ÷¸òà ñêîëüçÿùåãî ñðåäíåãî (The type of the price used for calculaton of Moving Average).
0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED */
extern string MA_3 = "The input parameters of the 3rd moving average";
extern int MA_3_TF = 1; // Âðåìåííîé èíòåðâàë (Time Frame). 1 = M1; 5 = M5; 15 = M15; 30 = M30; 60 = H1; 240 = H4; 1440 = D1;
extern int MA_3_Period = 89; // Ïåðèîä óñðåäíåíèÿ (Averaging period).
extern int MA_3_Mode = MODE_EMA; // Ìåòîä âû÷èñëåíèÿ ñêîëüçÿùåãî ñðåäíåãî (Averaging method). 0 = SMA; 1 = EMA; 2 = SSMA; 3 = LWMA;
extern int MA_3_Price = PRICE_WEIGHTED; /* Èñïîëüçóåìàÿ öåíà äëÿ ðàñ÷¸òà ñêîëüçÿùåãî ñðåäíåãî (The type of the price used for calculaton of Moving Average).
0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED */
extern string MA_4 = "The input parameters of the 4th moving average";
extern int MA_4_TF = 1; // Âðåìåííîé èíòåðâàë (Time Frame). 1 = M1; 5 = M5; 15 = M15; 30 = M30; 60 = H1; 240 = H4; 1440 = D1;
extern int MA_4_Period = 144; // Ïåðèîä óñðåäíåíèÿ (Averaging period).
extern int MA_4_Mode = MODE_EMA; // Ìåòîä âû÷èñëåíèÿ ñêîëüçÿùåãî ñðåäíåãî (Averaging method). 0 = SMA; 1 = EMA; 2 = SSMA; 3 = LWMA;
extern int MA_4_Price = PRICE_WEIGHTED; /* Èñïîëüçóåìàÿ öåíà äëÿ ðàñ÷¸òà ñêîëüçÿùåãî ñðåäíåãî (The type of the price used for calculaton of Moving Average).
0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED */
extern bool RangeGraphic = TRUE; // Âûäåëÿòü îáëàñòü èíäèêàòîðà ïðè ñîâïàäåíèÿ íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ.
extern color RangeColorUp = Black;
extern color RangeColorDown =Lime;
extern bool RangeAlert = TRUE; // Àëåðò ïðè ñîâïàäåíèè íàïðàâëåíèÿ äâèæåíèÿ ÷åòûðåõ ÌÀ.
extern string Visual = "Display parameters";
extern string Wingdings = "0 || 1 || 2";
extern int BarWingdings = 2;
extern int BarWidth = 4; // Òîëùèíà.
extern color BarColorUp = indicator_color1;
extern color BarColorDown = indicator_color2;
int P1_Position = 4;
int P2_Position = 3;
int P3_Position = 2;
int P4_Position = 1;
extern double Gap = 0.6;
extern string SetLabel = "Labels setting";
extern bool ShowLabel = TRUE;
extern string V_Label= "Vertical shift for text labels";
extern double V_Shift = 0.5; // Âåðòèêàëüíûé ñäâèã òåêñòîâîé ìåòêè.
extern string H_Label = "Horizontal shift for text labels";
extern int H_Shift = 30; // Ãîðèçîíòàëüíûé ñäâèã òåêñòîâîé ìåòêè.
extern string UP_DN = "Moving average direction relative to the price: above/below";
extern color TextColorUp = indicator_color1;
extern color TextColorDown = indicator_color2;
//+------------------------------------------------------------------+
string Label = "", ShortName;
double MA1_Up_Buffer[];
double MA2_Up_Buffer[];
double MA3_Up_Buffer[];
double MA4_Up_Buffer[];
double MA1_Down_Buffer[];
double MA2_Down_Buffer[];
double MA3_Down_Buffer[];
double MA4_Down_Buffer[];
double MA1_0 = 0.0;
double MA2_0 = 0.0;
double MA3_0 = 0.0;
double MA4_0 = 0.0;
double MA1_1 = 0.0;
double MA1_2 = 0.0;
double MA1_3 = 0.0;
double MA2_1 = 0.0;
double MA2_2 = 0.0;
double MA2_3 = 0.0;
double MA3_1 = 0.0;
double MA3_2 = 0.0;
double MA3_3 = 0.0;
double MA4_1 = 0.0;
double MA4_2 = 0.0;
double MA4_3 = 0.0;
bool HavePlayedUp = FALSE;
bool HavePlayedDown = FALSE;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
int WingdingsUp, WingdingsDown;
switch(BarWingdings)
{
case 0 : WingdingsUp = 167; WingdingsDown = 167; break;
case 1 : WingdingsUp = 159; WingdingsDown = 160; break;
case 2 : WingdingsUp = 158; WingdingsDown = 158; break;
default : Alert(WindowExpertName()+" ERROR : Please enter the correct value for BarWingdings !"); return(0);
}
SetIndexStyle (0, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorDown);
SetIndexStyle (1, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorUp);
SetIndexStyle (2, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorDown);
SetIndexStyle (3, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorUp);
SetIndexStyle (4, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorDown);
SetIndexStyle (5, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorUp);
SetIndexStyle (6, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorDown);
SetIndexStyle (7, DRAW_ARROW, STYLE_SOLID, BarWidth, BarColorUp);
SetIndexArrow (0, WingdingsUp);
SetIndexArrow (1, WingdingsDown);
SetIndexArrow (2, WingdingsUp);
SetIndexArrow (3, WingdingsDown);
SetIndexArrow (4, WingdingsUp);
SetIndexArrow (5, WingdingsDown);
SetIndexArrow (6, WingdingsUp);
SetIndexArrow (7, WingdingsDown);
SetIndexBuffer(0, MA1_Up_Buffer);
SetIndexBuffer(1, MA1_Down_Buffer);
SetIndexBuffer(2, MA2_Up_Buffer);
SetIndexBuffer(3, MA2_Down_Buffer);
SetIndexBuffer(4, MA3_Up_Buffer);
SetIndexBuffer(5, MA3_Down_Buffer);
SetIndexBuffer(6, MA4_Up_Buffer);
SetIndexBuffer(7, MA4_Down_Buffer);
SetIndexEmptyValue(0, EMPTY_VALUE);
SetIndexEmptyValue(1, EMPTY_VALUE);
SetIndexEmptyValue(2, EMPTY_VALUE);
SetIndexEmptyValue(3, EMPTY_VALUE);
SetIndexEmptyValue(4, EMPTY_VALUE);
SetIndexEmptyValue(5, EMPTY_VALUE);
SetIndexEmptyValue(6, EMPTY_VALUE);
SetIndexEmptyValue(7, EMPTY_VALUE);
SetIndexLabel(0, "1st Up Buffer");
SetIndexLabel(1, "1st Down Buffer");
SetIndexLabel(2, "2nd Up Buffer");
SetIndexLabel(3, "2nd Down Buffer");
SetIndexLabel(4, "3rd Up Buffer");
SetIndexLabel(5, "3rd Down Buffer");
SetIndexLabel(6, "4th Up Buffer");
SetIndexLabel(7, "4th Down Buffer");
IndicatorDigits(0);
ShortName = "Alex5757000 - Multi Moving Average v2.1";
IndicatorShortName(ShortName);
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
int i;
string Name = WindowFind(ShortName);
for(i=1; i<=4; i++)
{
if(ObjectFind("Text " + Name + i)!=-1) ObjectDelete("Text " + Name + i);
}
for(i=1; i<=10; i++)
{
if(ObjectFind("Intro_" + i)!=-1) ObjectDelete("Intro_" + i);
}
if(ObjectFind("RectangleUp")==WindowFind(WindowExpertName())) ObjectDelete("RectangleUp");
if(ObjectFind("RectangleDown")==WindowFind(WindowExpertName())) ObjectDelete("RectangleDown");
GlobalVariableDel("INTRO");
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
datetime TimeArray_1[], TimeArray_2[], TimeArray_3[], TimeArray_4[];
int CountedBars = IndicatorCounted(), i, y;
// ïðîâåðêà íà âîçìîæíûå îøèáêè.
if(CountedBars<0) return(-1);
// ïîñëåäíèé ïîñ÷èòàííûé áàð áóäåò ïåðåñ÷èòàí.
if(CountedBars>0) CountedBars--;
int Limit = Bars - CountedBars;
color TextColor_1, TextColor_2, TextColor_3, TextColor_4;
if(ShowIntro) ShowIntro();
else
{
for(i=1; i<=10; i++)
{
if(ObjectFind("Intro_"+i)!=-1) ObjectDelete("Intro_"+i);
}
}
//+------------------------------------------------------------------+
if(MA_1_TF < Period()) MA_1_TF = Period();
ArrayCopySeries(TimeArray_1,MODE_TIME,Symbol(),MA_1_TF);
for(i=0, y=0; y<=Limit; y++)
{
while(Time[y] < TimeArray_1[i]) i++;
MA1_1 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i);
MA1_2 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i+1);
MA1_3 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i+2);
MA1_1 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i);
MA1_2 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i+1);
MA1_3 = iMA(NULL, MA_1_TF, MA_1_Period, 0, MA_1_Mode, MA_1_Price, i+2);
MA1_0 = iMA(NULL, MA_1_TF, 1, 0, MA_1_Mode, MA_1_Price, i);
MA1_Up_Buffer[y] = EMPTY_VALUE;
MA1_Down_Buffer[y] = EMPTY_VALUE;
if(MA1_1 < MA1_2) MA1_Up_Buffer[y] = Gap * P1_Position + 1.0;
else MA1_Down_Buffer[y] = Gap * P1_Position + 1.0;
if(MA1_1 < MA1_0) TextColor_1 = TextColorUp;
else TextColor_1 = TextColorDown;
}
//+------------------------------------------------------------------+
if(MA_2_TF < Period()) MA_2_TF = Period();
ArrayCopySeries(TimeArray_2,MODE_TIME,Symbol(),MA_2_TF);
for(i=0, y=0; y<=Limit; y++)
{
while(Time[y] < TimeArray_2[i]) i++;
MA2_1 = iMA(NULL, MA_2_TF, MA_2_Period, 0, MA_2_Mode, MA_2_Price, i);
MA2_2 = iMA(NULL, MA_2_TF, MA_2_Period, 0, MA_2_Mode, MA_2_Price, i+1);
MA2_3 = iMA(NULL, MA_2_TF, MA_2_Period, 0, MA_2_Mode, MA_2_Price, i+2);
MA2_0 = iMA(NULL, MA_2_TF, 1, 0, MA_2_Mode, MA_2_Price, i);
MA2_Up_Buffer[y] = EMPTY_VALUE;
MA2_Down_Buffer[y] = EMPTY_VALUE;
if(MA2_1 < MA2_2) MA2_Up_Buffer[y] = Gap * P2_Position + 1.0;
else MA2_Down_Buffer[y] = Gap * P2_Position + 1.0;
if(MA2_1 < MA2_0) TextColor_2 = TextColorUp;
else TextColor_2 = TextColorDown;
}
//+------------------------------------------------------------------+
if(MA_3_TF < Period()) MA_3_TF = Period();
ArrayCopySeries(TimeArray_3,MODE_TIME,Symbol(),MA_3_TF);
for(i=0, y=0; y<=Limit; y++)
{
while(Time[y] < TimeArray_3[i]) i++;
MA3_1 = iMA(NULL, MA_3_TF, MA_3_Period, 0, MA_3_Mode, MA_3_Price, i);
MA3_2 = iMA(NULL, MA_3_TF, MA_3_Period, 0, MA_3_Mode, MA_3_Price, i+1);
MA3_3 = iMA(NULL, MA_3_TF, MA_3_Period, 0, MA_3_Mode, MA_3_Price, i+2);
MA3_0 = iMA(NULL, MA_3_TF, 1, 0, MA_3_Mode, MA_3_Price, i);
MA3_Up_Buffer[y] = EMPTY_VALUE;
MA3_Down_Buffer[y] = EMPTY_VALUE;
if(MA3_1 < MA3_2) MA3_Up_Buffer[y] = Gap * P3_Position + 1.0;
else MA3_Down_Buffer[y] = Gap * P3_Position + 1.0;
if(MA3_1 < MA3_0) TextColor_3 = TextColorUp;
else TextColor_3 = TextColorDown;
}
//+------------------------------------------------------------------+
if(MA_4_TF < Period()) MA_4_TF = Period();
ArrayCopySeries(TimeArray_4,MODE_TIME,Symbol(),MA_4_TF);
for(i=0, y=0; y<=Limit; y++)
{
while(Time[y] < TimeArray_4[i]) i++;
MA4_1 = iMA(NULL, MA_4_TF, MA_4_Period, 0, MA_4_Mode, MA_4_Price, i);
MA4_2 = iMA(NULL, MA_4_TF, MA_4_Period, 0, MA_4_Mode, MA_4_Price, i+1);
MA4_3 = iMA(NULL, MA_4_TF, MA_4_Period, 0, MA_4_Mode, MA_4_Price, i+2);
MA4_0 = iMA(NULL, MA_4_TF, 1, 0, MA_4_Mode, MA_4_Price, i);
MA4_Up_Buffer[y] = EMPTY_VALUE;
MA4_Down_Buffer[y] = EMPTY_VALUE;
if(MA4_1 < MA4_2) MA4_Up_Buffer[y] = Gap * P4_Position + 1.0;
else MA4_Down_Buffer[y] = Gap * P4_Position + 1.0;
if(MA4_1 < MA1_0) TextColor_4 = TextColorUp;
else TextColor_4 = TextColorDown;
}
if(MA1_Up_Buffer[0]!=EMPTY_VALUE && MA2_Up_Buffer[0]!=EMPTY_VALUE && MA3_Up_Buffer[0]!=EMPTY_VALUE && MA4_Up_Buffer[0]!=EMPTY_VALUE && RangeAlert==TRUE)
{
if(!HavePlayedUp) { PlaySound("wait.wav"); HavePlayedUp = TRUE; }
}
else HavePlayedUp = FALSE;
if(MA1_Down_Buffer[0]!=EMPTY_VALUE && MA2_Down_Buffer[0]!=EMPTY_VALUE && MA3_Down_Buffer[0]!=EMPTY_VALUE && MA4_Down_Buffer[0]!=EMPTY_VALUE && RangeAlert==TRUE)
{
if(!HavePlayedDown) { PlaySound("wait.wav"); HavePlayedDown = TRUE; }
}
else HavePlayedDown = FALSE;
//+------------------------------------------------------------------+
if(ShowLabel) LabelSet(TextColor_1, TextColor_2, TextColor_3, TextColor_4);
//+------------------------------------------------------------------+
if(RangeGraphic)
{
if(MA1_Up_Buffer[0]!=EMPTY_VALUE && MA2_Up_Buffer[0]!=EMPTY_VALUE && MA3_Up_Buffer[0]!=EMPTY_VALUE && MA4_Up_Buffer[0]!=EMPTY_VALUE) RangeGraphic("RectangleUp", RangeColorDown);
else
{
if(ObjectFind("RectangleUp")==WindowFind(WindowExpertName())) ObjectDelete("RectangleUp");
}
if(MA1_Down_Buffer[0]!=EMPTY_VALUE && MA2_Down_Buffer[0]!=EMPTY_VALUE && MA3_Down_Buffer[0]!=EMPTY_VALUE && MA4_Down_Buffer[0]!=EMPTY_VALUE) RangeGraphic("RectangleDown", RangeColorUp);
else
{
if(ObjectFind("RectangleDown")==WindowFind(WindowExpertName())) ObjectDelete("RectangleDown");
}
}
else
{
if(ObjectFind("RectangleUp")==WindowFind(WindowExpertName())) ObjectDelete("RectangleUp");
if(ObjectFind("RectangleDown")==WindowFind(WindowExpertName())) ObjectDelete("RectangleDown");
}
//+------------------------------------------------------------------+
return(0);
}
//+------------------------------------------------------------------+
int LabelSet(color TextColor_1, color TextColor_2, color TextColor_3, color TextColor_4)
{
double
Price,
ID = Time[1] - Time[2];
string
Name,
Text;
color
TextColor;
if(ShowLabel==TRUE)
{
for(int i=1; i<=4; i++)
{
switch(i)
{
case 1: Text = TimeFrame(MA_1_TF) + " " + Mode(MA_1_Mode) + " (" + MA_1_Period + ")" + " " + Price(MA_1_Price);
Price = Gap * P1_Position + 1.0 + V_Shift;
TextColor = TextColor_1;
break;
case 2: Text = TimeFrame(MA_2_TF) + " " + Mode(MA_2_Mode) + " (" + MA_2_Period + ")" + " " + Price(MA_2_Price);
Price = Gap * P2_Position + 1.0 + V_Shift;
TextColor = TextColor_2;
break;
case 3: Text = TimeFrame(MA_3_TF) + " " + Mode(MA_3_Mode) + " (" + MA_3_Period + ")" + " " + Price(MA_3_Price);
Price = Gap * P3_Position + 1.0 + V_Shift;
TextColor = TextColor_3;
break;
case 4: Text = TimeFrame(MA_4_TF) + " " + Mode(MA_4_Mode) + " (" + MA_4_Period + ")" + " " + Price(MA_4_Price);
Price = Gap * P4_Position + 1.0 + V_Shift;
TextColor = TextColor_4;
}
Name = WindowFind(ShortName);
NewBar(Name);
if(ObjectFind("Text " + Name + i)==-1) ObjectCreate("Text " + Name + i, OBJ_TEXT, WindowFind(ShortName), iTime(NULL, 0, 0) + ID * H_Shift, Price);
ObjectSetText("Text " + Name + i, Text, 8, "Arial Bold", TextColor);
}
}
return(0);
}
//+------------------------------------------------------------------+
string TimeFrame(int TF)
{
if(TF == 1 || (TF == 0 && Period() == PERIOD_M1 )) return ("M1" );
if(TF == 5 || (TF == 0 && Period() == PERIOD_M5 )) return ("M5" );
if(TF == 15 || (TF == 0 && Period() == PERIOD_M15)) return ("M15");
if(TF == 30 || (TF == 0 && Period() == PERIOD_M30)) return ("M30");
if(TF == 60 || (TF == 0 && Period() == PERIOD_H1 )) return ("H1" );
if(TF == 240 || (TF == 0 && Period() == PERIOD_H4 )) return ("H4" );
if(TF == 1440 || (TF == 0 && Period() == PERIOD_D1 )) return ("D1" );
if(TF == 10080 || (TF == 0 && Period() == PERIOD_W1 )) return ("W1" );
if(TF == 43200 || (TF == 0 && Period() == PERIOD_MN1)) return ("MN" );
}
//+------------------------------------------------------------------+
string Mode(int MA_Mode)
{
switch(MA_Mode)
{
case 0 : return("SMA");
break;
case 1 : return("EMA");
break;
case 2 : return("SSMA");
break;
case 3 : return("LWMA");
//----
default : Alert(WindowExpertName()+" ERROR : Please enter the correct value for MA_Mode !"); return(0);
}
}
//+------------------------------------------------------------------+
string Price(int MA_Price)
{
switch(MA_Price) //0 = CLOSE, 1 = OPEN, 2 = HIGH, 3 = LOW, 4 = MEDIAN, 5 = TYPICAL, 6 = WEIGHTED
{
case 0 : return("Price Close");
break;
case 1 : return("Price Open");
break;
case 2 : return("Price High");
break;
case 3 : return("Price Low");
break;
case 4 : return("Price Median");
break;
case 5 : return("Price Typical");
break;
case 6 : return("Price Weighted");
//----
default : Alert(WindowExpertName()+" ERROR : Please enter the correct value for MA_Price !"); return(0);
}
}
void Label_Create_And_Set(string Name, string Text,int FontSize, string FontName, color TextColor, bool Back, int XD, int YD, int CR)
{
if(ObjectFind(Name)==-1) ObjectCreate(Name, OBJ_LABEL, 0, 0, 0, 0, 0);
ObjectSet(Name, OBJPROP_XDISTANCE, XD);
ObjectSet(Name, OBJPROP_YDISTANCE, YD);
ObjectSet(Name, OBJPROP_CORNER, CR);
ObjectSet(Name, OBJPROP_COLOR, TextColor);
ObjectSet(Name, OBJPROP_BACK, Back);
ObjectSetText(Name, Text, FontSize, FontName);
}
//+------------------------------------------------------------------+
void ShowIntro()
{
int i = 1;
Label_Create_And_Set("Intro_"+i, "g", 1500, "Webdings", C'015, 015, 015', FALSE, 1, 1, 1); i++;
Label_Create_And_Set("Intro_"+i, "Óñëóãè áèðæåâîãî ïðîãðàììèñòà ïî ñîçäàíèþ ÌÒÑ", 14, "Arial", Lime, FALSE, 500, 200, 1); i++;
Label_Create_And_Set("Intro_"+i, "èíäèêàòîðîâ è ñêðèïòîâ íà MQL4", 14, "Arial", Lime, FALSE, 580, 230, 1); i++;
Label_Create_And_Set("Intro_"+i, "MetaTrader MQL4 programming services : developing EA", 14, "Arial", Lime, FALSE, 485, 260, 1); i++;
Label_Create_And_Set("Intro_"+i, "custom indicators and scripts", 14, "Arial", Lime, FALSE, 603, 290, 1); i++;
Label_Create_And_Set("Intro_"+i, "E-mail : Alex5757000@yandex.ru", 14, "Arial", Lime, FALSE, 585, 320, 1); i++;
Label_Create_And_Set("Intro_"+i, "Set ShowIntro = false.", 10, "Arial", Lime, FALSE, 650, 350, 1); i++;
}
//+------------------------------------------------------------------+
bool NewBar(string Name)
{
static int PrevTime =0;
if(PrevTime==iTime(NULL,0,0)) return(FALSE);
PrevTime=iTime(NULL,0,0);
for(int i=1; i<=4; i++)
{
ObjectDelete("Text " + Name + i);
}
return(TRUE);
}
//+------------------------------------------------------------------+
void RangeGraphic(string Name, color Color)
{
datetime Time_1 = iTime(Symbol(), Period(), Bars);
datetime Time_2 = iTime(Symbol(), Period(), 0) + TimeCurrent();
double Price_1 = 1;
double Price_2 = 4;
ObjectCreate(Name, OBJ_RECTANGLE, WindowFind(WindowExpertName()), Time_1, Price_1, Time_2, Price_2);
ObjectSet(Name, OBJPROP_COLOR, Color);
}
//+------------------------------------------------------------------+
Comments
