Alert SMA-EMA CrossOver1

This script is designed as a technical analysis tool for the MetaTrader platform to help traders identify potential trend shifts in the financial markets. It functions by tracking two different types of moving averages—the Simple Moving Average (SMA) and the Exponential Moving Average (EMA)—and monitoring how they interact with one another in real-time.

Core Logic Overview

The primary goal of this tool is to detect "crossovers." In trading, a crossover occurs when one moving average line passes through another, often signaling a change in momentum or the start of a new price trend.

  • Trend Monitoring: The script calculates two lines on your chart: a "slower" SMA and a "faster" EMA. By comparing these two, the tool can distinguish between bullish (upward) and bearish (downward) movements.

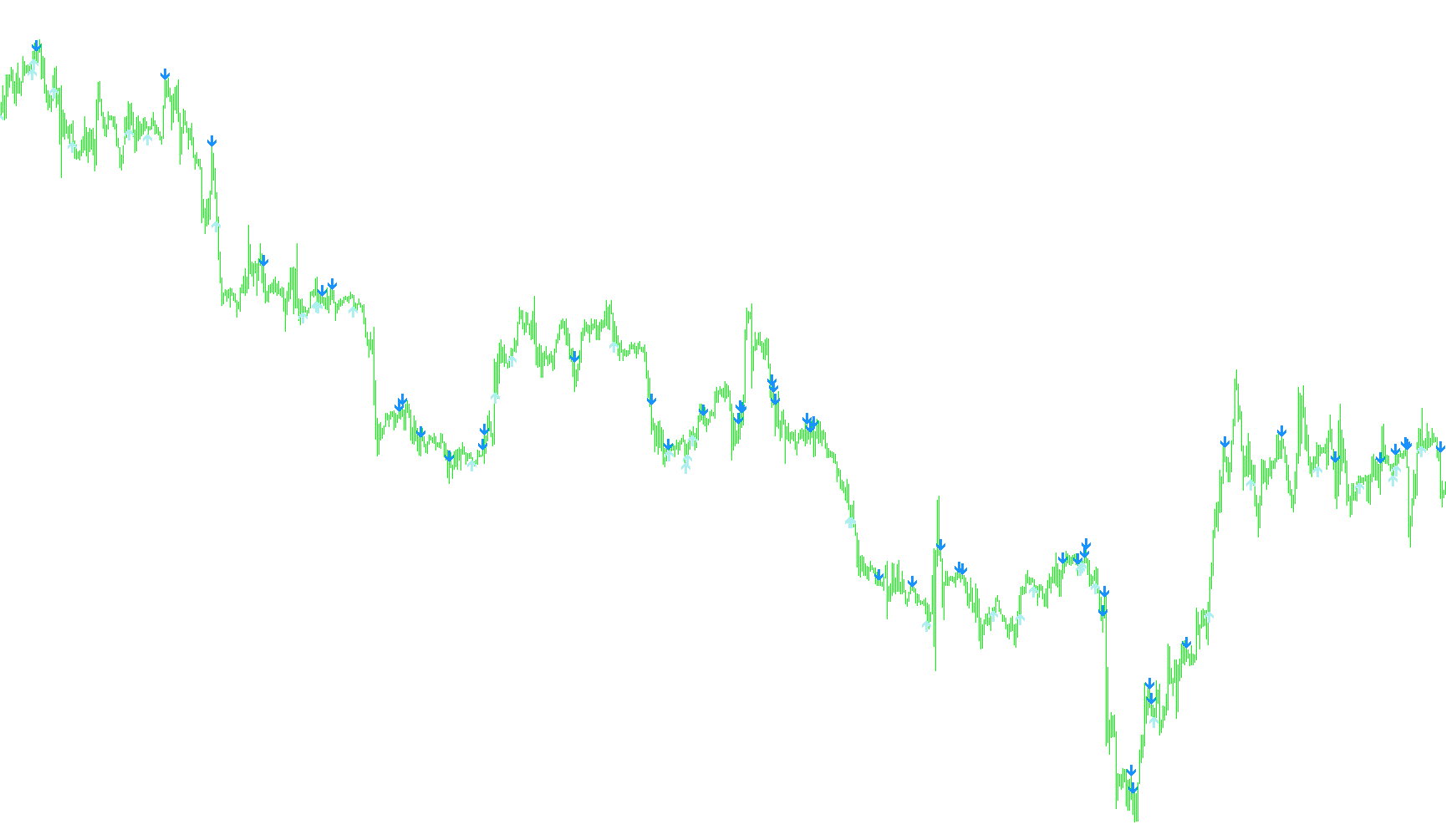

  • Visual Signaling: When the script detects a specific crossover event, it automatically places visual markers (arrows) on the price chart. This allows you to see exactly where the logic triggered a signal without having to manually scan the entire history of the candles.

How the Signals Work

The script identifies two specific types of trading opportunities:

  1. Buy Signals: The tool looks for a moment where the fast EMA moves from below the SMA to above it. When this happens, it interprets the momentum as positive and triggers a "Buy" alert. It places an upward-pointing arrow on the chart.
  2. Sell Signals: Conversely, the tool monitors for the fast EMA to drop from above the SMA to below it. This is interpreted as negative momentum, triggering a "Sell" alert and placing a downward-pointing arrow on the chart.

Automated Notifications

Beyond just drawing arrows on your screen, the script is built to keep you informed proactively. When a crossover occurs, the tool performs three actions simultaneously:

  • On-Screen Alert: A pop-up message appears within the trading platform to notify you of the trend change immediately.
  • Audio Feedback: It plays an alert sound to ensure you don't miss a signal if you are looking away from your monitor.
  • Email Notifications: If enabled in the settings, the script will automatically send an email to your registered account. This email contains specific details, including the type of trend (Buy or Sell), the current moving average value, and the price at which the signal occurred.

Customizable Parameters

The tool is designed to be flexible, allowing users to adjust several key variables to match their specific trading style:

  • Moving Average Periods: You can change how "fast" or "slow" the averages react by adjusting the time periods for both the SMA and EMA.
  • Timeframes: The logic is optimized to handle various chart intervals (from short-term minutes to long-term daily charts).
  • Alert Settings: Users can toggle the email notification feature on or off depending on their preference for communication.
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt plays sound alertsIt sends emails
14 Views
0 Downloads
0 Favorites
Alert SMA-EMA CrossOver1
//+------------------------------------------------------------------+
//|                                      Alert SMA-EMA CrossOver.mq4 |
//|                      Copyright © 2007, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Red
#property indicator_color2 Aqua
#property indicator_color3 DodgerBlue
#property indicator_color4 Magenta

//---- Variables Externes
extern int SMAPeriod = 13;
extern int EMAPeriod = 6;
extern int TimeFrame = 240;
extern bool Email    = True;

//---- Indicateurs
double SMACurrent, SMAPrevious, EMACurrent, EMAPrevious;
int    nShift, digit, digits;
int    i,j,limit,counted_bars;

//---- Buffers
double ExtMapBuffer1[];    //SMA
double ExtMapBuffer2[];    //EMA
double ExtMapBuffer3[];    //Fleche Haut
double ExtMapBuffer4[];    //Fleche Bas
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
   {
//---- indicators
//---- Styles et couleur des Lignes
      SetIndexStyle(0,DRAW_LINE);
      SetIndexBuffer(0,ExtMapBuffer1);
      SetIndexStyle(1,DRAW_LINE);
      SetIndexBuffer(1,ExtMapBuffer2);
//---- Styles et couleur des Fleches
      SetIndexStyle(2, DRAW_ARROW, 0, 1);    // Fleche vers le haut
      SetIndexArrow(2, 233);
      SetIndexBuffer(2, ExtMapBuffer3);
      SetIndexStyle(3, DRAW_ARROW, 0, 1);    // Fleche vers le bas
      SetIndexArrow(3, 234);
      SetIndexBuffer(3, ExtMapBuffer4);
//----
      switch(Period())
         {
            case     1: nShift = 1;   break;
            case     5: nShift = 3;   break;
            case    15: nShift = 5;   break;
            case    30: nShift = 10;  break;
            case    60: nShift = 15;  break;
            case   240: nShift = 20;  break;
            case  1440: nShift = 80;  break;
            case 10080: nShift = 100; break;
            case 43200: nShift = 200; break;
         }
//----
      digits = MarketInfo(Symbol(),MODE_DIGITS);
//----
      return(0);
   }

//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
   {
//----

//----
      return(0);
   }

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
   {
      counted_bars=IndicatorCounted();
//----
      if(counted_bars<0)
         return(-1);
      if(counted_bars>0)
         counted_bars--;
      limit=Bars-counted_bars;

      for(i=0; i<limit; i++)
         {
            SMACurrent=iMA(NULL,TimeFrame,SMAPeriod,0,MODE_SMA,PRICE_CLOSE,i);
            SMAPrevious=iMA(NULL,TimeFrame,SMAPeriod,0,MODE_SMA,PRICE_CLOSE,i+1);
            ExtMapBuffer1[i]=SMACurrent;
            EMACurrent=iMA(NULL,TimeFrame,EMAPeriod,0,MODE_EMA,PRICE_CLOSE,i);
            EMAPrevious=iMA(NULL,TimeFrame,EMAPeriod,0,MODE_EMA,PRICE_CLOSE,i+1);
            ExtMapBuffer2[i]=EMACurrent;
//---- Dessin des fleches, future entré en trade
//---- Buy
            if((EMACurrent > SMACurrent+ digit*Point) && ( EMAPrevious <= SMACurrent))  // Croisement WMA8  up bord supérieur du tunnel
               {
                  ExtMapBuffer3[i] = Low[i] - nShift*Point;
                  Alert("SMA-EMA CrossOver Going for a BUY Trend Sesion ",SMACurrent," Price ",Close[1]," for ", Symbol(),"-",Period());
                  PlaySound("alert.wav");
                  if (Email)
                     {
                        SendMail("SMA-EMA CrossOver", "SMA-EMA CrossOver Going for a BUY Trend Sesion "+DoubleToStr(SMACurrent, digits)+" Price "+DoubleToStr(Close[1], digits)+" for "+Symbol()+"-"+Period());
                     }
               }
//---- Sell
            if((SMACurrent > EMACurrent+ digit*Point) && ( EMAPrevious >= SMACurrent))  // Croisement WMA8  down bord inférieur du tunnel
               {
                  ExtMapBuffer4[i] = High[i] + nShift*Point;
                  Alert("SMA-EMA CrossOver Going for a SELL Trend Sesion ",SMACurrent," Price ",Close[1]," for ", Symbol(),"-",Period());
                  PlaySound("alert.wav");
                  if (Email)
                     {
                        SendMail("SMA-EMA CrossOver", "SMA-EMA CrossOver Going for a SELL Trend Sesion "+DoubleToStr(SMACurrent, digits)+" Price "+DoubleToStr(Close[1], digits)+" for "+Symbol()+"-"+Period());
                     }
               }
         }
//----
      return(0);
   }
//+------------------------------------------------------------------+
