3MACross_AlertWarnSigOnlyNoShift_v2

Download script
Author:
3MACross_AlertWarnSigOnlyNoShift_v2

This technical indicator is designed to help traders identify momentum shifts by monitoring the interaction between three different Moving Averages (Fast, Medium, and Slow). Instead of just looking at a single line, this script analyzes how these averages intersect with one another to signal potential trend changes.

Core Logic Overview

The script constantly calculates three distinct moving average lines based on user-defined speeds and types (such as Simple, Exponential, Smoothed, or Linear Weighted). By comparing the relationship between these three lines, the tool identifies "crosses"—moments when one average passes over another.

How it Identifies Signals

The logic follows a specific hierarchy to determine what kind of movement is happening:

  1. Fast vs. Medium: It first checks if the Fast Moving Average has crossed the Medium Moving Average.
  2. Fast vs. Slow: If no "Fast/Medium" cross is detected, it checks if the Fast Moving Average has crossed the Slow Moving Average.
  3. Medium vs. Slow: Finally, it checks if the Medium Moving Average has crossed the Slow Moving Average.

By checking these in a specific order, the script prioritizes identifying the most immediate price momentum first.

Visual and Audible Notifications

When one of these three types of crosses occurs, the script performs two main actions:

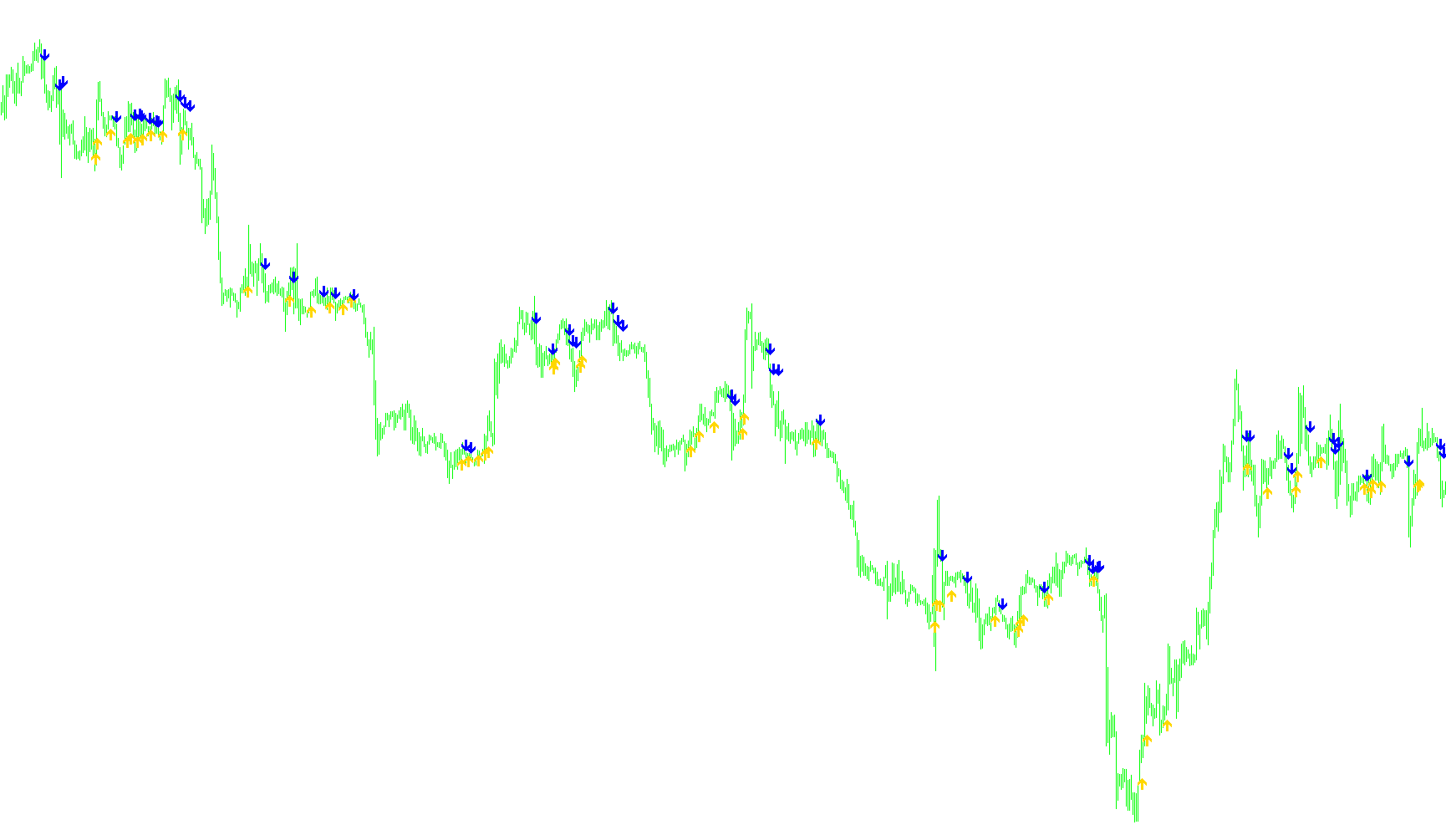

  • On-Chart Visuals: The tool automatically places arrows on your trading chart at the exact point where the cross occurred. To ensure these marks are clearly visible and do not clutter the price candles, the script calculates a "Range" (based on recent high/low prices) and offsets the arrows slightly above or below the crossover point.
  • Real-Time Alerts: The script is programmed to send immediate notifications. Depending on your settings, it can trigger a pop-up message on your screen, play an audio sound, or send an email notification. It identifies the specific direction of the cross (Up or Down) and specifies exactly which two moving averages interacted to create the signal.

Key Features for the User

  • Customizable Modes: You can choose different types of Moving Averages to suit your preferred trading style.
  • Current Bar Filtering: There is a specific toggle to decide whether you want signals to appear on the "live" candle currently forming or only after a candle has officially closed.
  • Dynamic Alerting: The script includes logic to ensure that you aren't spammed with multiple alerts for the same cross; it intelligently tracks the time and message to notify you only once per movement.
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screenIt sends emailsIt plays sound alerts
13 Views
0 Downloads
0 Favorites
3MACross_AlertWarnSigOnlyNoShift_v2
//+------------------------------------------------------------------+
//|                                  MA_Cross_3MACross_AlertWarnSig  |
//|                                             2008forextsd mladen  |
//|                 Copyright © 1999-2007, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.ru  |
//+------------------------------------------------------------------+
#property copyright ""
#property link      ""
//----
#property indicator_chart_window
#property indicator_buffers 4
//----
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 Yellow
#property indicator_color4 Gold
#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 1
#property indicator_width4 1
//----
extern int FasterMA   =5;
extern int FasterMode =1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int MediumMA    =13;
extern int MediumMode =1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern int SlowerMA    =34;
extern int SlowerMode =1; // 0 = sma, 1 = ema, 2 = smma, 3 = lwma
extern bool crossesOnCurrent=true;
extern bool alertsOn        =true;
extern bool alertsMessage   =true;
extern bool alertsSound     =false;
extern bool alertsEmail     =false;
extern string   MA_Shift ="all MA_Shift = 0";
extern string   MA_Mode="SMA0 EMA1 SMMA2 LWMA3";
//----
double CrossUp[];
double CrossDown[];
double CrossWUp[];
double CrossWDown[];
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int init()
  {
   SetIndexBuffer(0, CrossUp);    SetIndexStyle(0, DRAW_ARROW); SetIndexArrow(0, 233);
   SetIndexBuffer(1, CrossDown);  SetIndexStyle(1, DRAW_ARROW); SetIndexArrow(1, 234);
   SetIndexBuffer(2, CrossWUp);   SetIndexStyle(2, DRAW_ARROW); SetIndexArrow(2, 233);
   SetIndexBuffer(3, CrossWDown); SetIndexStyle(3, DRAW_ARROW); SetIndexArrow(3, 234);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int deinit()
  {
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   int    limit, i;
   int    counted_bars=IndicatorCounted();
   double fasterMAnow, fasterMAprevious, fasterMAafter;
   double mediumMAnow, mediumMAprevious, mediumMAafter;
   double slowerMAnow, slowerMAprevious, slowerMAafter;
//----
   if(counted_bars<0) return(-1);
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;
//----
   for(i=limit; i >=0; i--)
     {
      double Range=0.0;
      for(int counter=i ;counter<=i+9;counter++) Range+=MathAbs(High[counter]-Low[counter]);
      Range/=10;
//----
      fasterMAnow     =iMA(NULL, 0, FasterMA, 0,FasterMode, PRICE_CLOSE, i);
      fasterMAprevious=iMA(NULL, 0, FasterMA, 0,FasterMode, PRICE_CLOSE, i+1);
      mediumMAnow     =iMA(NULL, 0, MediumMA, 0,MediumMode, PRICE_CLOSE, i);
      mediumMAprevious=iMA(NULL, 0, MediumMA, 0,MediumMode, PRICE_CLOSE, i+1);
      slowerMAnow     =iMA(NULL, 0, SlowerMA, 0,SlowerMode, PRICE_CLOSE, i);
      slowerMAprevious=iMA(NULL, 0, SlowerMA, 0,SlowerMode, PRICE_CLOSE, i+1);
      //avoid current bar if not allowed to check crosses on current (i==0)
      if (crossesOnCurrent==false && i==0) continue;
//----
      int    crossID=0;
      double curr;
      double prev;
      double point;
      while(true)
        {
         curr=fasterMAnow      - mediumMAnow;
         prev=fasterMAprevious - mediumMAprevious;
         point=(fasterMAnow      + fasterMAprevious)/2;
         if (curr*prev<=0) { crossID=1; break; }
         curr=fasterMAnow      - slowerMAnow;
         prev=fasterMAprevious - slowerMAprevious;
         if (curr*prev<=0) { crossID=2; break; }
         curr=mediumMAnow      - slowerMAnow;
         prev=mediumMAprevious - slowerMAprevious;
         point=(mediumMAnow      + mediumMAprevious)/2;
         if (curr*prev<=0) { crossID=3; break; }
         break;
        }
      //    the interesting thing is the direction of the crossing
      //    which MA is the primary and which one the secondary
      //    if you do not know that you can not determine the "direction"
      //    of the cross
      CrossUp[i]   =EMPTY_VALUE;
      CrossDown[i] =EMPTY_VALUE;
      CrossWUp[i]  =EMPTY_VALUE;
      CrossWDown[i]=EMPTY_VALUE;
      if (crossID>0)
        {
         if (alertsOn)
            if ((i==0 && crossesOnCurrent==true) || (i==1 && crossesOnCurrent==false))
              {
               switch(crossID)
                 {
                  case 1:
                     if(curr>0) doAlert(" 3MACross: Fast MA crossed Medium MA UP");
                     else       doAlert(" 3MACross: Fast MA crossed Medium MA DOWN");
                     break;
                  case 2:
                     if(curr>0) doAlert(" 3MACross: Fast MA crossed Slow MA UP");
                     else       doAlert(" 3MACross: Fast MA crossed Slow MA DOWN");
                     break;
                  case 3:
                     if(curr>0) doAlert(" 3MACross: Medium MA crossed Slow MA UP");
                     else       doAlert(" 3MACross: Medium MA crossed Slow MA DOWN");
                     break;
                 }
              }
         //----
         if (i==0)
           {
            if (curr>0)
               CrossWUp[i]  =point - Range*0.5;
            else  CrossWDown[i]=point + Range*0.5;
           }
         else
           {
            if (curr>0)
               CrossUp[i]  =point - Range*0.5;
            else  CrossDown[i]=point + Range*0.5;
           }
        }
     }
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void doAlert(string doWhat)
  {
   static string   previousAlert="nothing";
   static datetime previousTime;
   string message;
//----
     if (previousAlert!=doWhat || previousTime!=Time[0])
     {
      previousAlert =doWhat;
      previousTime  =Time[0];
      //        if time needed :
      //        message =  StringConcatenate(Symbol()," at ",TimeToStr(TimeLocal(),TIME_SECONDS)," @",Bid," ", doWhat);
      message= StringConcatenate(Symbol()," at ",Bid," ", doWhat);
      if (alertsMessage) Alert(message);
      if (alertsEmail)   SendMail(StringConcatenate(Symbol()," 3MACross:"," M",Period()),message);
      if (alertsSound)   PlaySound("alert2.wav");
     }
  }
//+------------------------------------------------------------------+
